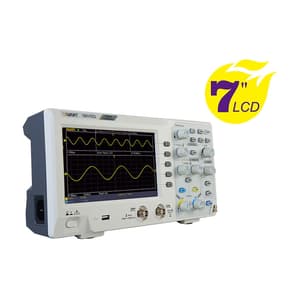

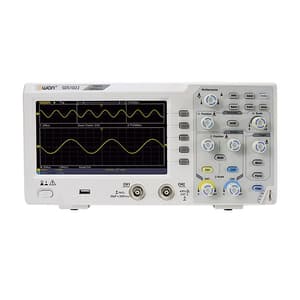

Owon 200MHz / 1GS/s Dual Channel Economical Type Digital Storage Oscilloscope, SDS 1202
Roll over image to zoom zoom_in
- Weight: 1.1 Kg
- Product Type: Oscilloscopes
- Bandwidth: 200 MHz
- No. of Channels: Dual Channel
- Sample Rate: 1GS/s
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹40155.4 (Incl. of all taxes)
₹34030+ ₹6125.4 GST (18%)
MRP ₹41500
SAVE 18%
5 Business Days
1 Set
903020
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Ultra-thin body
- 7 inch high resolution LCD
- SCPI, and LabVIEW supported
 |
 |
 |
 |
 |
 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.OS.00002 |
|---|---|
| Product Type | Oscilloscopes |
| Model No | SDS1202 |
| Bandwidth | 200 MHz |
| No. of Channels | Dual Channel |
| Sample Rate | 1GS/s |
| Record Length | 10K |
| Rise Time (At Input, Typical) | =17.5ns |
| Trigger Type | Edge, Video |
| Fuse | 2A, T class, 250V |
| Input Coupling | DC, AC , and GND |
| Dimension (W x H x D) | 301 x 152 x 70 mm |
| Waveform Math | +, -, x, ÷, invert, FFT |
| Trigger Mode | Auto, Normal, and Single |
| Vertical Sensitivity | 5mV/div - 5V/div (at input) |
| Display | 7"Color LCD, 800 x 480 Pixels |
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) |
| Horizontal Scale (s/div) | 2ns/Div - 1000s/Div, Step by 1-2-5 |
