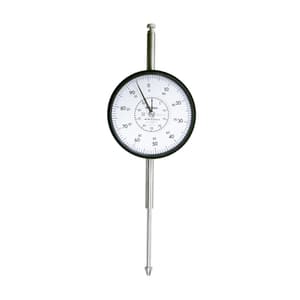

Mitutoyo Lug Back, ISO Type Jeweled Bearing, Shockproof, 50mm, 0,01mm Dial Gauge, 3058A-19
Roll over image to zoom zoom_in
- Product Type: Dial Indicator
- Range (mm): 0.01 - 50 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹8248.2 (Incl. of all taxes)
₹6990+ ₹1258.2 GST (18%)
1 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
This is a standard, metric dial indicator. It offers you the following benefits::
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
- Large-diameter dial face ø = 78 mm for easy reading
- 0,01 / 0,001 mm graduation

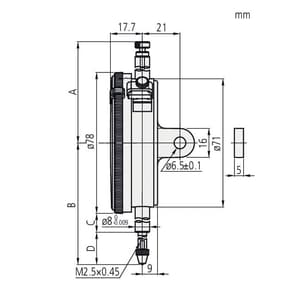

| A: | 81.9 mm |
| B: | 142.3 mm |
| C: | 43.9 mm |
| D: | 59.4 mm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.DI.00071 |
|---|---|
| Product Type | Dial Indicator |
| Model No | 3058A-19 |
| Range | 50 mm |
| Range (mm) | 0.01 - 50 mm |
| Range per rev | 1 mm |
| Type of Product | Dial Gauge |
| Scale | 0-100 (100-0) |
| MPE any 1/10 revolution | 10 µm |
| MPE any 1/2 revolution | 12 µm |
| MPE any 1 revolution | 13 µm |
| MPE measuring range | 30 µm |
| H MPE (Hysteresis) | 6 µm |
| R MPE (Repeatability) | 3 µm |
| Measuring force | 0,4-3 N |
| Mass | 298 g |
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Graduation | 0.01 mm |
| Type | EN ISO Standard |
| Stem | 8 mm |
| Contact point | Carbide tipped, thread: M 2.5 x 0.45 mm |
| Delivered | with certificate of inspection |
| Jeweled Bearing | Yes |
