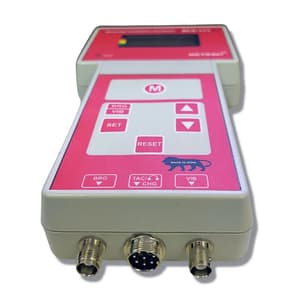

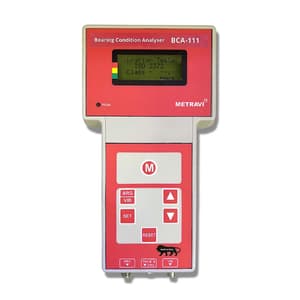

The Metravi Bearing Pulse Analyser BCA-111 combines the functions of a bearing pulse meter, a vibration meter, and a tachometer. It is used to check the operating condition of rotating machines, in order to detect mechanical faults and supply data for effective preventive maintenance.

With the BCA-111 maintenance personnel can monitor all significant aspects of mechanical machine conditions.

• the mechanical condition of rolling bearings  (bearing damage development).
• the lubrication condition of rolling bearing (lubricant film in the rolling interface).
• general machine condition (the effect of structural looseness, misalignment and out-of-balance on machine vibration).

The purpose of systematic condition monitoring is:

• to avoid unnecessary overhauls of machines in good working order.
• to avoid routine replacements of serviceable bearings.
• to improve the life expectancy of rolling bearings by optimising the lubrication.
• To detect trouble spots in time for planned repairs and replacements, avoiding both breakdowns and unnecessary production stops.

The condition monitoring functions of the Metravi BCA-111 is based on two widely used measuring techniques.

• Bearing Pulse Method for bearing monitoring.
• Broad band vibration velocity measurement according to ISO 2372.

The instrument requires few data inputs and allows an instant interpretation of machine condition by supplying.

• a direct indication of machine vibration and bearing condition in terms of good – reduced – bad.
• a digital display of lubrication condition data LFT No. and damage severity readings for bearings.
• Vibration severity readings in mm/s RMS
• Non-contact measurement of RPM

Features:

• Micro-processor based diagnostic tool
• Direct Indication of machine condition in terms of good-reduced-bad
• Mechanical Condition of Bearing
• Lubrication condition of Bearing
• Damage Severity readings for rolling bearings.
• Non-Contact measurements of rotational speed
• Vibration Severity measurements according to ISO recommendations.
• Bearing Tester Function Range 0 to 99dBpv
• Vibration Range 0.1 to 99.9 mm/s RMS
• Laser Tachometer range up to 20000 RPM

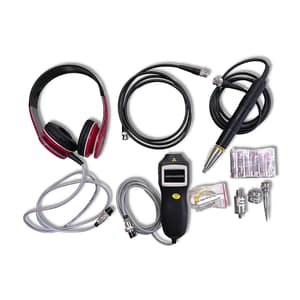

What's Included In This:

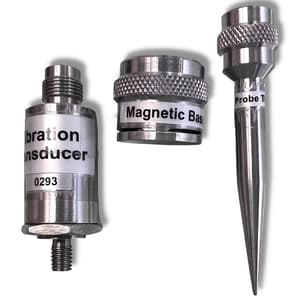

• 1x Bearing Probe
• 1x Head phone
• 1x Accelerometer
• 1x Tachometer probe

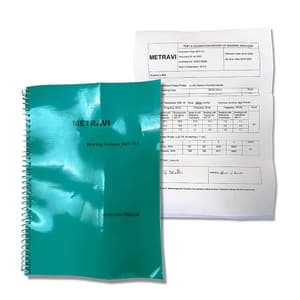

• 1x Instruction manual
• 1x Battery

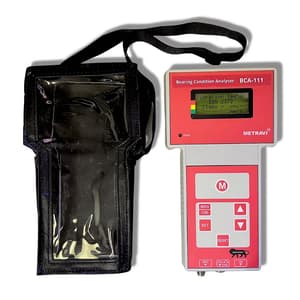

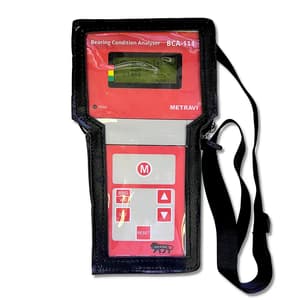

• 1x Carrying case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
