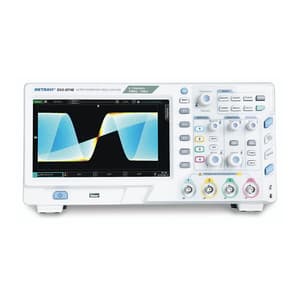

70MHz DSO with coloured display, 1GSa/Sec sampling rate with USB device & host interface. Increased auto-measure speed, improved UI, optimised software which reduces wait-time and fixed upper limit bandwidth distortion in multi-channel mode.

• Increased waveform capture rate greatly improves the ability to capture low probability events, signal jitters and glitches are easier to be seen.
• Independent time base signals allows users to simultanously observe up to four different frequency signals clearly
• High memory depth allows users to capture longer period signals without losing waveform details
• Greatly increased number of triggering types
• Auto Measurement: Peak-Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mean, Middle, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio, Delay A- >B , Delay A- > B , Delay B- > A , Delay B- > A

Features:

• Increased auto-measure speed
• Improved UI – more user-friendly
• Optimised software – reduces operation wait time
• Fixed upper limit bandwidth distortion in multi-channel mode
• Sample rate up to 1GS/s
• Channels 4
• Bandwidth 70MHz
• Memory Depth 56Mpts (single channel)
• Waveform Capture Rate up to 80,000 wfms/s
• 256 multi-level intensity grading display
• Up to 65,000 frames for waveform record, replay
• Increased trigger types: Edge, pulse width, runt, window, N-edge, delay, timeout, duration, setup/hold, slope, video, code
• Support serial bus trigger and decoding (RS-232, I2C, SPI included)
• 8 inches, TFT LCD, WVGA (800 x 480)
• Interface: USB Host, USB Device, LAN, AUX (Trig Out, Pass/Fail)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
