Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 27

Shop all Metravi

SKU: ME.EL.MU.00071

Model: PRO27

Roll over image to zoom zoom_in
  1. Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 27
  2. Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 27
  3. Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 27
  4. Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 27
  5. Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 27
  6. Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 27
  7. Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 27
  8. Metravi 6000 Counts / 1000 V AC / DC Digital TRMS Multimeter with VFD, PRO 27
Visit Metravi Store keyboard_double_arrow_right
  • Product Type: Multimeter
  • DC Voltage Range: 0-60mV/600mV/6V/60V/600V/1000V
  • AC Voltage Range: 0-60mV/600mV/6V/60V/600V/1000V
  • Temperature Range: -40°C to 1000°C
  • Duty Cycle Range: 0.1% to 99.9%
  • Sampling Time: 2 times/sec
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹7220.42 (Incl. of all taxes)

₹6119+ ₹1101.42 GST (18%)

MRP ₹8998

SAVE 32%

5 Business Days

1 Pcs

90303100

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

This is a 6000 counts backlit LCD display, Auto-Ranging T-RMS Multimeter with 61 Segment Analogue Bar-graph and is a best fit for all applications regarding electrical motors. This IP67 water and dust proof instrument can be used for Variable Frequency Drive (VFD)measurements and also measures Ghost Voltage (Lo-Z).

One press of a button and you can toggle between Voltage-Frequency & Current-Frequency.Features Data Hold, Peak Hold and Relative Measurement facilities. It has Auto Power-Off to save battery life along with Low Battery indication as well. Confirms to CATIII 1000V and CATIV 600V


Features:

  • Enclosure : Double Moulded, Waterproof
  • Shock (Drop Test) : 6.5 feet (2 meters)
  • Diode Test : Test Current of 0.9mA maximum, open circuit voltage approx 3.2V DC typical
  • Continuity Check : Audible signal will sound if the resistance is less than 50W (approx) test current <0.35mA
  • Input Impedance : > 10Mohm VDC & >10MOhm VAC AC
  • Response : True RMS
  • ACV Bandwidth : 45Hz to 1KHz
  • Crest Factor : ≤ 3 at full scale up to 500V, decreasing linearly to ≤1.5 at 1000V
  • Display : 6000 Counts back-lit liquid crystal with bar-graph
  • Over Range Indication : “OL” is displayed
  • Auto Power Off : 15 minutes (approximately) with disabling feature
  • Polarity : Automatic (No indication for positive): Minus (-) sign for negative
  • Measurement Rate : 2 times per second, nominal
  • Peak : Captures peaks> 1ms
  • Low Battery Indication : Symbol is displayed if battery voltage drops below operating voltage

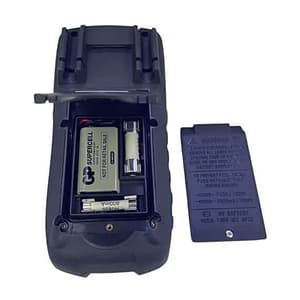

  • Battery : One 9 volt (NEDA 1604) battery
  • Fuses : mA. µA ranges: 0.8A/1000V ceramic fast blow A range; 10A/1000V ceramic fast blow
  • Operating Temperature : 5 to 40°C (41 to 104°F)
  • Storage Temperature : -20 to 60°C (-4 to 140°F)
  • Operating Humidity : Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F)
  • Storage Humidity : <80%
  • Operating Altitude : Operating Altitude
  • Heavy Duty Industrial T-RMS Multimeter
  • VFD (Variable Frequency Drive) Measurement up to 700V AC
  • AC Measurement Bandwidth 1kHz
  • 60 segment Analogue Bargraph
  • Peak Hold function
  • T-RMS Auto Ranging
  • Relative measurement
  • Double-injection moulding
  • IP67 waterproof, dust-proof
  • 2 metres shock-proof
  • Fast-blow Ceramic Fuse
  • UL listed
  • Warranty is one year against manufacturing defects



Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.MU.00071
Product TypeMultimeter
Model NoPRO27
Display Backlit LCD
Power Source Battery Operated
Battery Type / Size Alkaline / 9V
No. of Batteries 1
Colour Black
DC Voltage Range 0-60mV/600mV/6V/60V/600V/1000V
AC Voltage Range 0-60mV/600mV/6V/60V/600V/1000V
DC Current Range 0-600uA/6000uA/60mA/600mA/6A/10A
AC Current Range 0-600uA/6000uA/60mA/600mA/6A/10A
Resistance Range 0-600O/6kO/60kO/600kO/6MO/60MO
Capacitance Range 0-99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Temperature Range -40°C to 1000°C
Frequency Range 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
DC Voltage Accuracy ±0.5%
AC Voltage Accuracy ±0.8%
DC Current Accuracy ±0.8%
AC Current Accuracy ±1.5%
Resistance Accuracy ±0.8%
Capacitance Accuracy ±4.0%
Temperature Accuracy ±3%
Frequency Accuracy ±0.3%
DC Voltage Resolution 0.01mV to 1V
AC Voltage Resolution 0.01mV to 1V
DC Current Resolution 0.1µA to 0.01A
AC Current Resolution 0.1µA to 0.01A
Resistance Resolution 0.01O to 0.01MO
Capacitance Resolution 0.01nF to 0.01mF
Frequency Resolution 0.001Hz to 0.001MHz
Temperature Resolution 1°C
Duty Cycle Range 0.1% to 99.9%
Sampling Time 2 times/sec
Dust & Water Proof IP67
Drop Tested Drop Tested up to 2m
Certifications CAT III 1000V, CAT IV 600V, CE, CSA 61010-1, EN-61010-1, IEC-61010-1, Pollution Grade 2, UL 61010B-2-031, UL-61010-1
