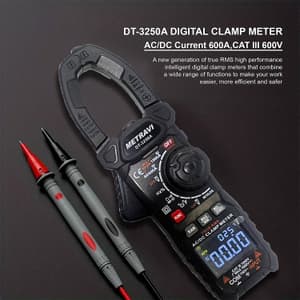

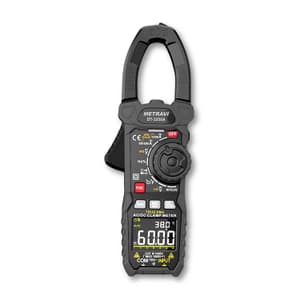

Metravi 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, DT-3250A

Shop all Metravi

SKU: ME.EL.CL.00227

Model: DT3250A

Roll over image to zoom zoom_in
  1. Metravi 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, DT-3250A
  2. Metravi 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, DT-3250A
  3. Metravi 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, DT-3250A
  4. Metravi 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, DT-3250A
  5. Metravi 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, DT-3250A
  6. Metravi 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, DT-3250A
  7. Metravi 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, DT-3250A
  8. Metravi 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, DT-3250A

  • Product Type: Clamp Meters
  • Display: 6000 Counts, Backlit
  • DC Current: 0-60A/600A/1000A
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

5633.32 (Incl. of all taxes)

4774+ ₹859.32 GST (18%)

MRP ₹7020

SAVE 32%



5 Business Days

1 Pcs

90303100

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Metravi DT-3250A is a dual impedance, TRMS, Digital Clamp Meter, integrating a variety of measurements like AC/DC Voltage, AC/DC Current, Frequency, Duty Ratio, Resistance, Capacitance, Temperature, Diode, Continuity, NCV, VFD, Inrush Current, and more. It features functions like last Data Hold, LED Flashlight, Max./Min./Relative value, Celsius/Fahrenheit degrees, and Zero key. The  Metravi DT-3250A Digital TRMS AC/DC Clamp Meter is a precise and well-built, True RMS Clamp Meter with solid build quality and loaded features. It has an excellent in-hand feel, and is very easy to use. It is an ideal clamp meter for home usage, home energy auditing, solar energy applications, battery estimation, etc.


Features:

  • Diode & Continuity Test
  • Auto power off
  • Flashlight
  • MAX / MIN record function
  • Data Hold

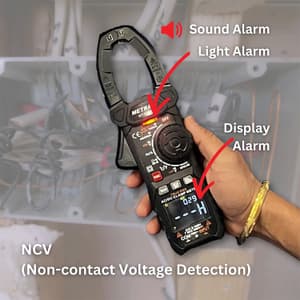

  • Non Contact Voltage Detector (NCV)
  • Live Wire detection
  • Inrush Current measurement
  • LoZ measurement facility
  • Measurement of Frequency Through Clamp
  • Dual Display: Voltage / Frequency, Current / Frequency on same screen


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.CL.00227
Product TypeClamp Meters
Model NoDT3250A
Display 6000 Counts, Backlit
DC Current 0-60A/600A/1000A
DC Current Accuracy ±(2.5%reading+8)
AC Current TRMS 0-60A/600A/1000A
AC Current Accuracy ±(2.5%reading+8)
DC Voltage 0-600mV/6V/60V/600V/1000V
DC Voltage Accuracy ±(0.5%reading+5)
AC Voltage 0-600mV/6V/60V/600V/750V
AC Voltage Accuracy ±(0.8%reading+5)
VFD Voltage 750V
VFD Voltage Accuracy ±(2.0%reading+5)
Resistance 600/6k/60k/600k/6M/60M Ohms
Resistance Accuracy ±(1.0%reading+5)
Capacitance 10nF/100nF/1000nF/10µF/100µF/1000µF/10mF/100mF
Capacitance Accuracy ±(4.0%reading+5)
Frequency 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz
Frequency Accuracy ±(1.0%reading+3)
K-type Temperature Upto 1000°C (Accuracy: ± 1.0% or ± 2°C)
Clamp Opening Size 40 mm
