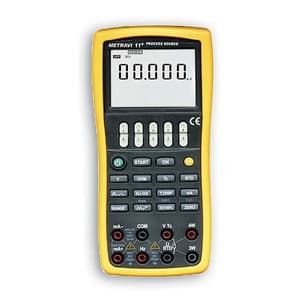

6 Digits, 0.2% Accuracy, Sources R, S, B, E, K, J, T, N types of thermocouples, PT-100, Cu-50, DC Voltage, DC Current, Resistance, Analogue Transducer, Frequency, Pulse Output and LOOP Power.

Features:

• Provides 25% step or 100% step DC Current output current manually or Automatically.
• TC Source terminals and built in lead connector of same temperature, The unit can be converted between °C & °F
• Auto Power Off
• High Acuuracy of 0.02% for source, 6 digits display for source.
• Source: DC Voltage, DC current, resistance, simulating transmitter, temperature (thermocouple/resistance temperature detector), frequency, pulse, contact.
• Provides 25% step or 100% step DC current output manually or automatically.
• TC source terminals and built-in lead connector of same temperature (RJ compensation with auto-reference joint point); the unit can be converted between °C and °F.
• Outside place temperature detector with high accuracy of ± 2°C.
• Big LCD can display the TC/RTD value and voltage/resistance value, mA value and mA% value corresponding simultaneously.
• Carefully designed key layout, each pair of increase/decrease key correspond with the set value on the LCD.
• It can be calibrated without open the cover of the calibrator.
• White LED backlight with auto turn off, and auto turn off the power, it is suitable for use on locale.

Other Features:

• Temperature Coefficient: 0.1 times the applicable accuracy specification per degree C for 5°C to 18°C and 28°C to 50°C.
• The range of the internal temperature compensation sensor is from 0°C to 40°C, Compensation error < ± 0.5°C.
• The accuracy of the temperature probe: ± 0.2°C. The range of the measured temperature is from -20°C-100°C.
• Maximum voltage between any output terminal and earth: 30Vp-p
• Maximum output current: Approximately 25mA.

General Specifications:

• Operating temperature and humidity <80% at 0°C to 50°C (non-condensing) <70% at 40°C to 50°C
• Storage temperature and humidity <90% at -25°C to 60°C (non-condensing)
• Display and backlight - A dual, Liquid Crystal Display, White LED for backlight
• Power Supply - 4 x 1.5AA-size alkaline batteries
• Automatic Power-off: It's allowed set the Automatic Power-off time from 0 to 60 minutes
• Size: 245 x 95 x 42 (mm)

What's Included In This Package:

• Accessories
• Test leads
• Fuse

Technical Specifications:

These specifications assume:

• A 1-year calibration cycle
• An operating temperature of 18°C to 28°C (64.4°F~82.4°F)
• Relative humidity of 35% to 70% (non-condensing)

Accuracy is expressed as ± (percentage of set value + percentage of range)


Function	Reference	Range	Reolution	Accuracy	Remark
DC voltage	100mV	-10.000-110.000mV	1μV	0.02+0.01	Maximum output: 0.5mA
	1000mV	-100.00-1100.00mV	10μ V	0.02+0.01	Maximum output: 2mA
	10V	-1.0000-11.0000V	0.1mV	0.02+0,01	Maximum output: 5mA
DC current	20mA	0.000mA-22.000mA	1μA	0.02+0.02	Simulator transmitter: 5-28V power supply outside; 1K2 at 20mA
Resistance	4000Ω	0.00Ω -400.00Ω	0.01Ω	0.02+0.02	Excitation current: ± 0.5-3mA; if ± 0.1-0.5mA, add 0.1Ω; Does not include lead resistance
	4KΩ	0.0000 KΩ -4.0000 KΩ	0.1Ω	0.05+0.025	Excitation current: ± 0.0/mA Does not include lead resistance
	40ΚΩ	0.000 ΚΩ~40.000 ΚΩ	1Ω	0.1+0.1	Excitation current: ± 0.01mA; Does not include lead resistance
TC	R	0°C-1767°C	1°C	0-100°C; 1.5°C 100-1767°C: 1.2°C	By using ITS-90 temperature scale; The accuracy does not include the error of internal temperature compensation caused by a sensor
	S	0°C-1767°C		0-100°C: 1.5°C 100-1767°C: 1.2°C
	K	-200.0°C-1372.0°C	0.1°C	-200.0-100.00.6°C -100-400.0°: 0.5°C 400.0~1200.0°C : 0.7°C 1200.0-1372.0: 0.9°C
	E	-200,0°C-1000.0°		-200-100.0°C 0.6°C -100-600.0°C 0.5°C 600-1000.0°C : 0.4°C
	J	-200.0°~1200.0°C		-200.0-100.0: 0.6°C -100-800.0°C : 0.5°C 800-1200.0°C: 0.7°C
	T	-250.0°-400.0°C		-250-400.0°: 0.6°C
	N	-200.0°C-1300.0°C		-200-100.0°C 1.0°C -100-900.0°C 0.7°C 900-1300.0°C: 0.8°C
	B	600°C~1820°C	1°C	600-800°C: 1.5°C 800-1820°C: 1.1°C
	L	-200.0°-900.0°C	0.1°C	-200.0-0.0°C 0.7°C 0.0~900.0°C 0.5°C
	U	-200.0°C-600.0°C	0.1°C	-200.0-0.0°C 0.7°C 0.0-600.0°C : 0.5°C
RTD	Pt100 385	-200.0°~800.0°C	0.1°C	-200.0-0.0°C : 0.3°C 0.0-400.0°C : 0.5°C 400-800.0°C : 0.8°C	By using temperature scale ITS-90 Excitation current: ± 0.5~+3mA for Pt 100, Cu10, Cu50 add 0.5°C when excitation current is + 0.1mA-0.5mA Excitation current: +0.05mA~+0.3mA for PT200, PT500, PT1000 Does not include lead resistance
	Pt200 385	-200.0°C-630.0°C		-200-100.0°C 0.8°C 100.0-300.0°C : 0.9°C 300.0-630.0°C 1.0°C
	Pt500 385	-200.0°C-630.0°C		-200-100.0°C: 0.4°C 100.0-300.0°C 0.5°C 300.0-630.0°C: 0.7°C
	Pt1000 385	-200.0°C-630.0°C		-200-100.0°C 0.2°C 100-300.0°C 0.5°C 300-630.0°C : 0.7°C
	Cu10	-100.0°C-260.0°C		1.8°C
	Cu50	-50.0°C~150.0°C		0.6°C
FREQ	100Hz	1.00Hz-110.00Hz	0.01Hz	+2 count	Output voltage: +1-+11V (zero base waveform); Amplitude accuracy: ± 5% reading value + 0.5V; Maximum load: > 100K≤2 Duty Cycle: 50%
	1KHz	0.100KHZ-1.100KHz	1Hz
	10KHz	1.0KHz~11.0KHz	0.1KHz
	100KHz	10KHz-110KHz	2KHZ	+ 5 count
PULSE	100Hz	1-100000 cycles	1 cyc	+ 2 count
	1KHz
	10KHz
SWITCH	100Hz	1.00Hz-110.00Hz	0.01Hz	+2 count	Contact output (with 0.0V amplitude setting, FET switch ON/OFF) Maximum open/close voltage/current: + 28V/50mA
	1KHz	0.100KH-1.100KHz	1Hz
	10KHz	1.0KHz~11.0KHz	0.1KHz
	100KHz	1.0KHz~11.0KHz	2KHz	+ 5 count
