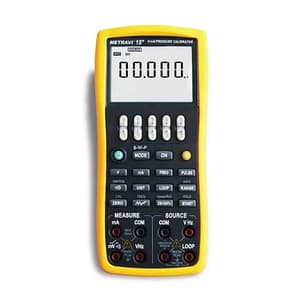

Digits, 0.2% Accuracy, Sources and Measures DC Voltage, DC Current, Analogue Transducer, and LOOP Power. The voltage/current/pressure calibrator (the calibrator in the following) is a handheld, battery-operated instrument that measures and sources electrical and physical parameters

• Measure: DC-voltage, DC-current, frequency and continuity
• Source: DC-voltage, DC-current, simulation transmitter, frequency and pulse
• Pressure: measuring pressure, Calibrating pressure-voltage transmitter, Calibrating 2wire pressure transmitter, Calibrating pressure switch;

Features:

• Provides voltage, Current outputs
• Provides Analogue Transducer output and loop power
• Measures voltage, current and loop current
• Most Precise & useful tool in field calibration
• Auto Power Off disable function
• Auto Power Off facility
• High Accuracy of 0.05%
• Display : 6 Digits LCD
• Output Provided
• DC Voltage : 0 – 200mV to 50V
• Resolution : 0.1mV, Accuracy : ±0.02%
• DC mA : 0 – 50mA
• Resolution : 1mA, Accuracy : ±0.02%
• Frequency : 0 – 10KHz
• Resolution : 0.01Hz, Accuracy : ±2 Counts
• Measure range
• DC voltage : 0 – 10V
• Resolution : 10µV, Accuracy : ±0.02%
• DC Current : 0 – 20mA
• Resolution : 1µA, Accuracy : ±0.02%
• Frequency : 0 – 10KHz
• Resolution : 0.01Hz, Accuracy : ±2%
• Pulse : 0 – 10KHz
• Resolution : 1cyc
• Loop Current : 0 to 24V
• Accuracy : ±10%
• Optional Compatible Accessory: Metravi PM-S Pressure Calibrator Modules to measure gauge, compound and absolute pressure. They feature self-temperature compensation and digital communication mode.

Other Features:

• Manual step source and auto-step and sweeping – step source
• Measurement/source mA% display
• Measurement wave-filter function
• Measurement manual-holding function
• Pressure source auto-holding function
• Rate : 2 Readings per Second about
• DCV Normal Mode Rejection Ratio (NMRR) ≥ 120dB (at 50Hz or 60Hz) Common Mode Rejection Ratio (CMRR) ≥ 60dB (at 50Hz or 60Hz)
• Temperature Coefficient : 0.1 times the applicable accuracy specification per degree : for 5ºC to 18ºC and 28ºC to 50ºC
• Maximum voltage between VΩHz terminal and COM terminal : 60 Vpk
• Maximum Input current : 55mA
• Protected with a 63mA / 250V fast blow fuse
• Temperature Coefficient : 0.1 times the applicable accuracy specification per degree : for 5ºC to 18ºC and 28ºC to 50ºC.
• Maximum voltage between any output terminal and earth : 30Vpk Maximum output current: Approximately 25mA.
• Temperature Coefficient : 0.1 times the applicable accuracy specification per degree : for 5ºC to 18ºC and 28ºC to 50ºC.
• Maximum voltage between any output terminal and earth : 60Vpk Maximum output current : Approximately 55mA.
• Protected with a 63mA / 250V fast blow fuse.

General Specifications For Source:

These specifications assume:

• A 1-year calibration cycle
• An operating temperature of 18ºC to 28ºC (64.4ºC ~ 82.4ºC)
• Relative humidity of 35% to 70% (non_condensing)
• Accuracy is expressed as ± (percentage of set value + percentage of range)

Technical Specifications:

These specifications assume:

• A 1-year calibration cycle
• An operating temperature of 18ºC to 28ºC
• Relative humidity of 35% to 70% (non_condensing)
• Accuracy is expressed as ± (percentage of reading + percentage of range).
• Reference Accuracy is defined as the full scale range accuracy gained in the lab environment.
• Entire Accuracy is defined as the full scale range accuracy in one year including 0ºC - 50ºC temperature compensation.
• APM010WGSG pressure module terminal is non-isolated, which is compatible only with dry or non-corrosive air. Other pressure module terminal is 316LSS isolation, which can be combined with all mediums compatible with 316-type stainless steel, all pressure module reference terminal are non-isolated.
• Six-month full scale range accuracy includes 15ºC - 45ºC temperature compensation.
• All pressure terminals are non-isolated, which are compatible only with dry or non-corrosive air

What's Included In This Package:

• A set of Industrial testing Lead (CL727220)
• A set of Testing Lead (Tp727110)
• A set of Alligator clip (CC807130)
• A quick reference guide
• A User’s Manual
• One Fuse 50mA / 250V
• One Fuse 63mA / 250V
