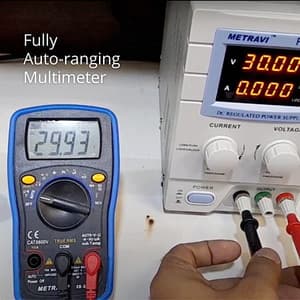

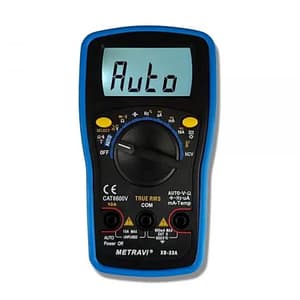

The Metravi XB-33A is a 6000 Counts, Auto-ranging TRMS Digital Multimeter, with a backlit LCD display. In case if you don’t know whether two points are short, or have voltage or linear resistance, no need to worry. Just connect this multimeter and the instrument will detect automatically.

This auto-ranging digital multimeter can measure AC TRMS Voltage and Current, DC Current / Voltage, Frequency, Resistance, Capacitance & Temperature. It also has Diode and Continuity Test and Non-contact Voltage Detection, along with overload protection to against incorrect connections.

Features:

• Accuracy : Stated at 23°C ±5°C (73°F ±10°F) and less than 70% RH
• Diode Test : Test current of 1mA maximum, open circuit voltage 3.2V DC typical
• Continuity Check : Audible signal will sound if the resistance is less than approximately <40±5 Ohm
• Temperature Sensor : Requires type K thermocouple
• Input Impedance : 10MOhm (V AC/DC)
• Display : 5999 counts backlit LCD
• Over-range : “OL” is displayed
• Polarity : Automatic (no indication for positive polarity): Minus(-) sign for negative polarity.
• Measurement Rate : 3 times per second, nominal
• Low Battery : Symbol is displayed if battery voltage drops below operating voltage
• Batteries : Requires (2) AAA batteries
• Fuses : mA range; 630mA/250V fast blow fuse, 10A range no fuse
• Operating Temperature : 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Relative Humidity : Maximum relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
• Data Hold : To freeze the displayed data
• Colour : Blue-Black
• Polarity : Automatic
• Over-range Alert

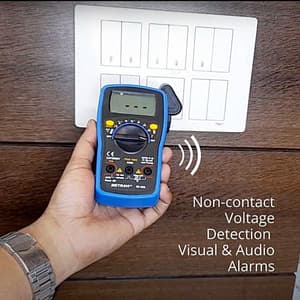

• Non-contact Voltage Detection (NCV)
• Input Impedance: 10MΩ (V AC/DC)
• Warranty is one year against manufacturing defects
