The Metravi DIT-913A is a handy, multi-functional, Digital Insulation Resistance Tester with 3 1/2 Digits 1999 Counts Backlit Display, and measures 0.00MΩ~22.0GΩ at 500V / 1000V / 2500V, with high accuracy.

It also measures DC Open Circuit Voltage, Short Circuit Current, Rated Test Current, AC Voltage Test, PI, DAR and has an Automatic Discharge function.

Features:

• 3-1/2 Digits 1999 Counts LCD Backlit Display
• Backlight On/Off function
• Lock function for hands-free operation
• Insulation Resistance
• AC Voltage Test
• PI - Polarisation Index measurement
• DAR - Insulation Resistance Value Absorption Ratio
• Automatic Discharge function
• Complies to IEC 61010-1, CATIII 600V
• Double-insulated Housing
• Alarm function

Technical Specifications:

Rated Voltage	500V MAX:5.5GΩ	1000V MAX:11.0GΩ	2500V MAX:22.0GΩ
Range of Accuracy	0.00MΩ~99MΩ:± (3 %+5dgt; 100MΩ~22.0GΩ:± (5 %+5dgt)
Measuring Range	0.00MΩ~22.0GΩ (When the value is less than or equal to 4.0 MΩ, the buzzer alarms
DC Open Circuit Voltage	500V±10%	1000V±10%	2500V±10%
Rated Test Current	250KΩ load 0.9mA~1.1mA	500KΩload 0.9mA~1.1mA	1MΩload 0.9mA~1.1mA
Short Circuit Current	Approximately less than 1.8mA
AC Voltage Test
Measuring range	AC30V~ AC750V(50Hz/60Hz)Resolution:1V
Accuracy	±(2%+3dgt

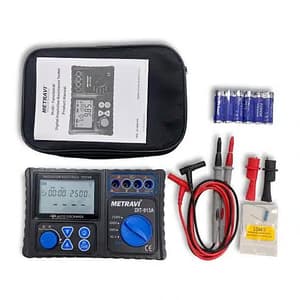

What's Included In This Package:

• 1x Test Leads
• 1x Pair Crocodile Clips
• 1x 10MΩ Standard Resistor
• 1x User Manual

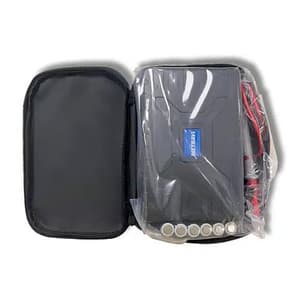

• 1x Soft Carrying Case
• 6x 1.5AA batteries
