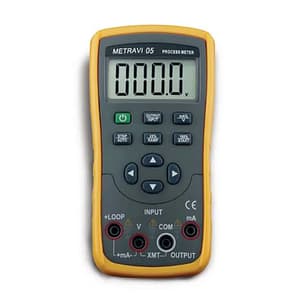

5 Digits, 0.5% Accuarcy, Sources DC Current, Analogue Transducer & Loop Power and Measures DC Voltage, DC Current and Loop Current.

Features:

• Provides output and measures DC Voltage and Loop Current.
• Simulates the output of analogue transducer.
• Can supply 24V DC Loop Power.
• Can produce fast and slow auto inclined wave output for 4 – 20mA current.
• Auto Power Off can be set by operator
• Can test switch mode and take operation in step from zero to full scale
• Displaying can be done both in mA and %
• suitable for field use
• High Accuracy of 0.05%

What's Included In This Package:

• User’s Manual,
• A set of CF-36 industrial test lead (with alligator clips attached to probes)

Technical Specifications:

Output Performance Index (applicable to temperature range from 18ºC to 28ºC, within one year after calibration)


Output	Range	Output Range	Resolution	Accuracy	Remark
DCA	20mA	0.000~22.000mA	0.001mA	±0.05% set value ±4uA	Max. load 1KΩat 20mA
Simu-transmitter (absorption current)	-20mA	0.000~-22.000mA	0.001mA	±0.05% set value ±4uA	Note: power supply range: 5~25VDC
Loop Power Supply	24V			±10%	Max. output current up to 25mA.

Input Performance Index (applicable to temperature range from 18ºC to 28ºC, within one year after calibration)


Output	Range	Output Range	Resolution	Accuracy	Remark
Voltage	28V	-0.200~28.000V	1mV	±0.02% reading±2mV	Input resistance about 1MΩ
Current	20mA	-1.000~22.000mA	0.001mA	±0.02% reading±4uA	resistance about 20Ω
Loop Current	20mA	0.000~22.000mA	0.001mA	±0.02% reading±4uA	providing 24V loop power
