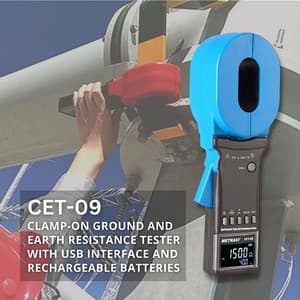

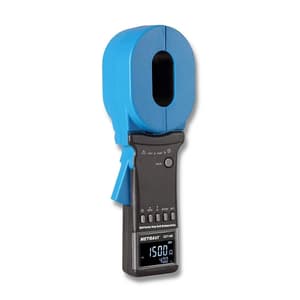

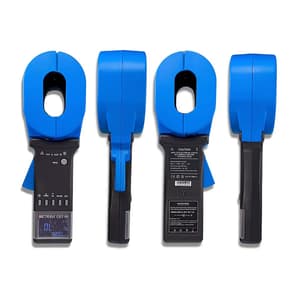

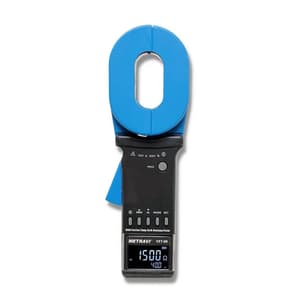

The Metravi CET-09 features Ground Resistance, Loop Resistance, Leakage Current measurements as well as judges Ground Faults. Clamp-on Ground Resistance Tester with USB Interface and Rechargeable Battery. With USB communication interface, stored data can be uploaded to the computer, and through software analysis, reports can be printed or shared. It can measure up to 40A leakage current.

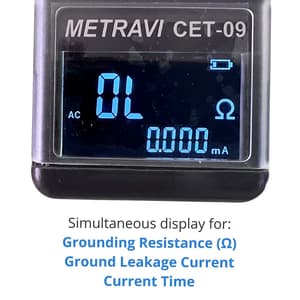

Real-time clock function displays present time, and it supports multi-parameter on-screen display function – displaying grounding resistance and ground leakage current at the same time, which makes measurements practical, convenient and efficient

Features:

• Clamp Size 65mmx32mm
• Tester Size 295mmx98mmx66mm
• Range 0.010Ω-1500Ω
• Resistance Resolution 0.001Ω
• Resistance Test Accuracy (1%rdg + 0.01Ω)
• Current Range 0.000mA-40.0A
• Current Resolution 1uA
• Current Test Accuracy (1.5%rdg + 0.5mA)
• Power Supply: Rechargeable lithium battery
• Single Measurement Time 0.5 second
• Display 4-digit LCD digital display
• Real-time Clock Display
• Data Storage 999 Groups
• Beeping audible alarm
• Alarm Threshold Setting Range: Resistance : 1-199Ω; Current : 1-499mA
• Automatic Shift
• External Magnet / Electric Field: <40A/m; <1V/m
• Resistance Test Frequency >1KHz
• USB Interface and Software Monitoring for uploading data on computer

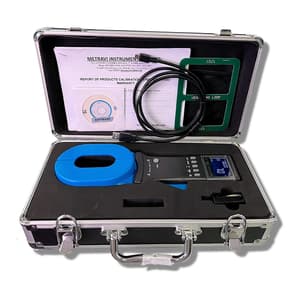

What's Included In This:

• 1x Meter
• 1x Test Ring
• 1x USB Data Cable / Charging Cable
• 1x Software CD
• 1x Charger
• 1x Hard Carrying Case
