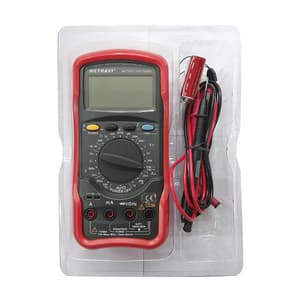

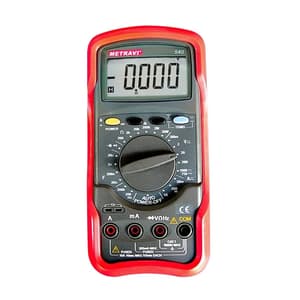

The 540 is a Multimeter with 4 1/2 digits, which has special & steady functions and is a highly reliable hand-held instrument. The highlight of the meter is the use of CMOS technology with large scale integrated circuit using double-integrated A/D transducer at its core and full ranges overload protection.

It can measure DC & AC currents, DC & AC Voltage, Resistance, Capacitance, Diode, Frequency & Continuity with Beeper.  AC Voltage & current measurements are TRMS and it has the function of AC+AC/DC which makes it an ideal tool for users.

Features:

• T–RMS Measurement
• Data Hold
• Auto Power Off
• Full-range symbol display.
• Fully-range overload protection.
• Low battery display.
• Display: 4 ½ Digits 19999 Counts Large LCD
• DC Voltage: 0 – 200mV/2V/200V/1000V
• Accuracy: ± 0.5%
• AC Voltage: 0 – 200mV/2V/20V/200V/1000V T-RMS
• Accuracy: ± 0.1%
• DC Current: 0 – 20mA/200mA/10A
• Accuracy: ± 0.5%
• AC Current: 0 – 20mA/200mA/10A T-RMS
• Accuracy: ± 1.0%
• Resistance:  0 – 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ
• Accuracy: ± 0.1%
• Capacitance: 0 – 20nF/200nF/2µF/20µF
• Accuracy: ± 2.0%
• Frequency: 0 – 20KHz/200KHz
• Accuracy: ± 1.0%
• Diode Test and Audible Continuity Test
