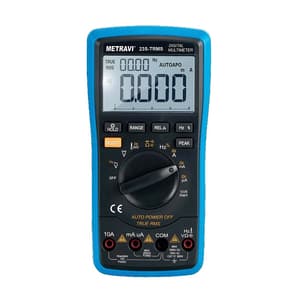

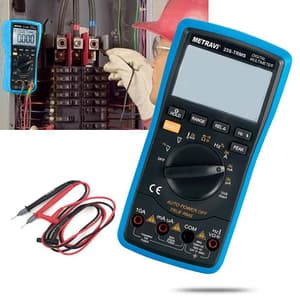

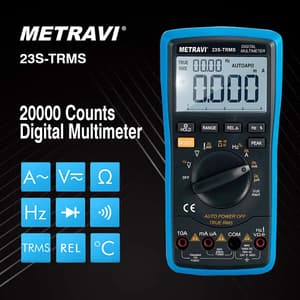

4-1/2 Digits 19,999 Counts, T-RMS, Backlit LCD, NCV, Data Hold, Peak Hold, Relative, Auto Power Off, Dual Display to show Voltage & Current with Frequency on the same screen, AC/DC Voltage, AC/ DC Current 10A, Resistance, Capacitance, Temperature, Frequency, Diode & Continuity Test both Audio and Visual. This 20000 counts multimeter is a 4-1/2 digits T-RMS Auto-ranging, has a high precision, stable performance, battery-driven, having high reliability and highly accurate instrument.

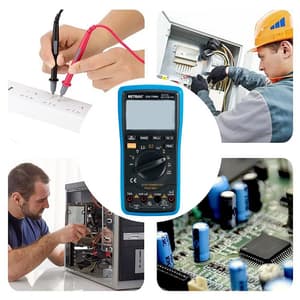

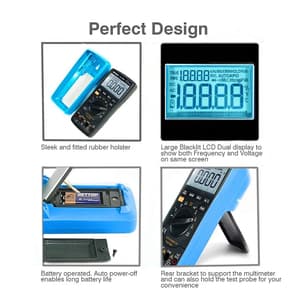

It has a 21mm character height super Large LCD screen with backlit and has a function to record peak value, it can be used to measure DC voltage and AC voltage, DC current and AC Current, Resistances, Capacitance, Diodes, Temperature, Non Contact Voltage Detection, Frequency and other parameters. It has dual display to show both Frequency and Voltage on the same screen. The instrumentuses double integral A / D conversion for processing, is a superior performance instrument, and is ideal to be used in laboratory, factories, radio enthusiasts and the ideal home tools.

Features:

• Display: 20000 Counts, 4-1/2 Digits, Backlit LCD display

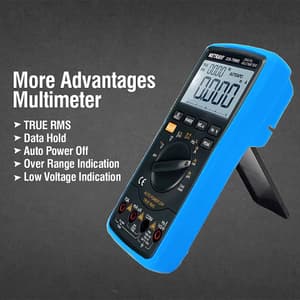

• T-RMS Measurements of Voltage and Current
• Data Hold, Peak Hold
• Relative Measurement

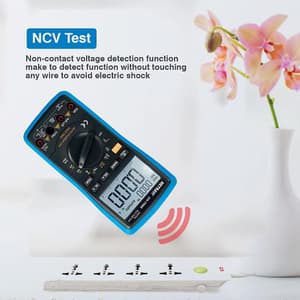

• Non Contact Voltage Detection
• Auto Ranging
• DC Voltage: 0–200m/2/20/200/1000V
• Accuracy: ± 0.05%
• AC Voltage (T-RMS): 0–200m/2/20/200/750V
• Accuracy: ± 0.06%
• DC Current: 0–200u/2000u/20m/200m/10A
• Accuracy: ± 0.5%
• AC Current (T-RMS): 0–200u/2000u/20m/200m/10A
• Accuracy: ± 0.5%
• Resistance: 0–200/2k/20k/200k/2M/20M.Ohms
• Accuracy: ± 0.3%
• Capacitance: 0–20n/200n/2u/20u/200u/2000uF
• Accuracy: ± 3.0%
• Frequency: 0–10/100/1k/10k/100k/1M/20MHz
• Accuracy: ± 0.01%

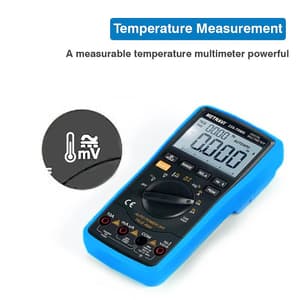

• Temperature: -40 to 1000 °C
• Accuracy: ± 1.0%
• Diode & Continuity Test Facility

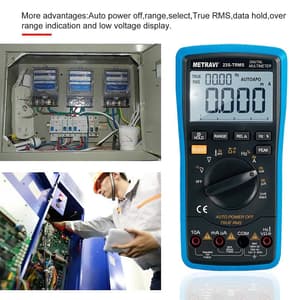

• Auto Power Off
• Overload Indication
• Maximum display: 20000 (41/2) bit automatic polarity display
• Measurement method: double integral A/D conversion
• Sampling rate: about 3 times per second
• Over-range display: the highest bit was “OL”
• Low voltage display: Battery symbol appears
• Working environment: (0 ~ 40) ?, relative humidity
• Power: 9V (NEDA1604/6F22)

What's Included In This Package:

• Manual
• Test Certificate
• A pair of test leads
• K-type thermocouple

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
