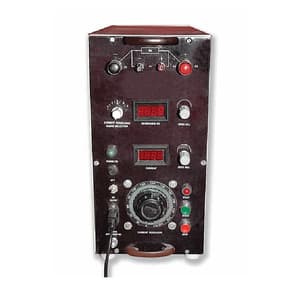

This UOT-10A Test Set is suitable to measure winding resistance of transformers single or 3 phase, star or delta connected upto several MVA. Two independent displays read the resistance of both primary or secondary winding simultaneously. However primary or secondary winding can also be measured separately. DC power source allows the selected current to flow through the winding/windings and the voltage developed across the winding are sent to instrumentation amplifiers, thereby displaying directly the ohmic value.


Features & Benefits:

• Measures winding resistance of highly inductive transformers of single phase and 3 Phase Star and Delta connections.
• Has four terminal bridge for lead resistance compensation.
• The set will be capable of overcoming high inductance of the transformer and allows fast measurements.
• Test Current – 10m / 100m / 1 and 10A.
• Duty : Continuous for 10m, 100m and 1A 30mins ON and 30mins OFF for 10A
• Resistance measurement range : 0 – 2m / 20m / 200m / 2 / 20 / 200 / 2000 Ohms
• Accuracy : ±0.5% or rdg
• Auxiliary Power Supply : 230V Single Phase AC 50Hz.

What's Included In This Package:

• 1x Metravi UOT-10A Micro Ohms Meter
• 1x Instruction manual
• 1x Power supply cable
• 1x Current leads
• 1x Potential leads

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
