Metravi 3999 Counts Digital TRMS AC/DC Clamp Meter With Non Contact Voltage Detector, DT-230

Shop all Metravi

SKU: ME.EL.CL.00226

Model: DT230TRMS

Roll over image to zoom zoom_in
  1. Metravi 3999 Counts Digital TRMS AC/DC Clamp Meter With Non Contact Voltage Detector, DT-230
  2. Metravi 3999 Counts Digital TRMS AC/DC Clamp Meter With Non Contact Voltage Detector, DT-230
  3. Metravi 3999 Counts Digital TRMS AC/DC Clamp Meter With Non Contact Voltage Detector, DT-230
Visit Metravi Store keyboard_double_arrow_right
  • Product Type: Clamp Meters
  • Display: 3999 Counts, Backlit LCD
  • AC Voltage (T-RMS): 0 – 4/40/400/600V (Accuracy: ±1.0%)
  • AC Current (T-RMS): 0 – 40/400A (Accuracy: ±2.5%)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹3032.6 (Incl. of all taxes)

₹2570+ ₹462.6 GST (18%)

MRP ₹3780

SAVE 32%

5 Business Days

1 Pcs

90303100

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Metravi DT-230 Digital TRMS AC/DC Clamp Meter is a multifunction, ergonomically-designed, battery-operated, robust and reliable device which is made of good quality material and will last long. Used for measuring AC & DC Voltage, AC & DC Current, Resistance, Capacitance, Frequency, NCV detection, Continuity and Diode Test. Features a built-in LED Flashlight and HD display along with Data Hold function, Auto power-off and alarm functions.


Features:

  • 3999 Counts Backlit LCD Display
  • MAX/MIN Record Function
  • A flashlight to access dark areas
  • Auto-Ranging
  • Auto Power Off
  • Data Hold
  • Low Battery Indication

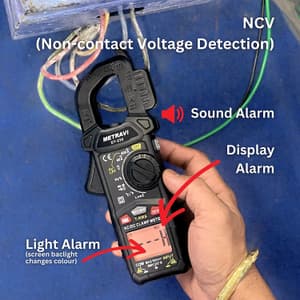

  • Non-contact Voltage Detection (NCV)
  • Live Wire Indication
  • Low Pass Filter (LPF)
  • Low Z Voltage Measurement
  • Diode Test & Continuity Test
  • Safety: Confirms to EN61010-1,-2-030, EN61010-2-033, EN6132601, CATIII 600V


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.CL.00226
Product TypeClamp Meters
Model NoDT230TRMS
Display 3999 Counts, Backlit LCD
DC Voltage 0 – 400m/4/40/400/600V (Accuracy: ±0.5%)
AC Voltage (T-RMS) 0 – 4/40/400/600V (Accuracy: ±1.0%)
DC Current 0 – 40 / 400A (Accuracy: ±2.5%)
AC Current (T-RMS) 0 – 40/400A (Accuracy: ±2.5%)
Resistance 0 – 400/4k/40k/400k/4M/40M Ohms (Accuracy: ±1.0%)
Capacitance 0 – 40n/400n/4u/40u/400u/4mF (Accuracy: ±4.0%)
Frequency 0 – 10/100/1k/10k/100k/1M/10MHz (Accuracy: ±1.0%)
Temperature -20 to 1000°C
DC Voltage Resolution 0.01mV to 1V
DC Current Resolution 0.01A – 0.1A
Resistance Resolution 0.1 Ohm – 0.01M Ohm
Capacitance Resolution 0.001nF – 0.01mF
Frequency Resolution 0.001Hz-0.001mHz
Sampling Time 3 Times/sec
Overload Indication Yes
Power Source 2x AAA Alkaline Batteries
Jaw Dia 26 mm
Relative Measurement Yes
Flashlight Yes
