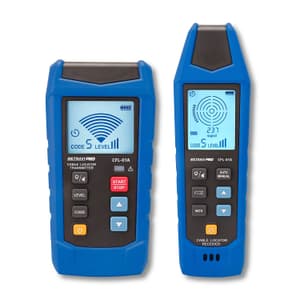

The Metravi CFL-01A Cable Locator effortlessly tracks cables and wires, saving you time and preventing accidental damage during installations or repairs. It is a powerful device consisting of a transmitter and a receiver with state-of-the-art sensors. The transmitter displays corresponding voltages (voltage of live cable: ≥8V), and the receiver simultaneously displays the signal strength, transmitter code, transmitter power level, low battery, etc., and supports up to 8 transmitters. The Metravi CFL-01A Cable Locator has multiple advantages including accurate measurements, easy operation, visualised display and more, making it an ideal tool for low-voltage cabling engineering, engineering and maintenance of metal conductors, etc.

Features:

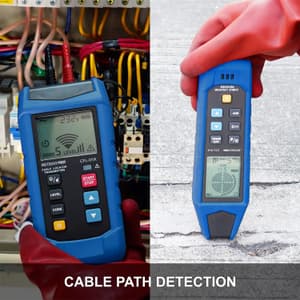

• Detect the path of low-voltage cables buried in the ground (such as cabling inside walls)

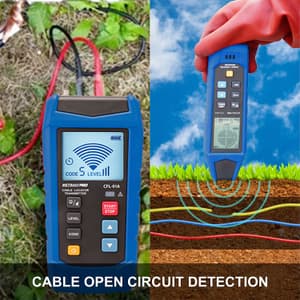

• Test and diagnose opens, shorts and other problems occurring at cabling

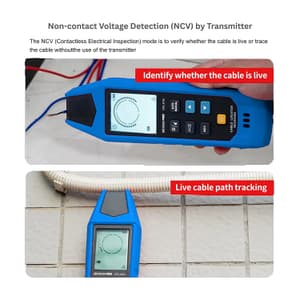

• Detect if the tested cable is live
• Detects conductors
• Identify interruptions or short circuits
• Trace underground cables

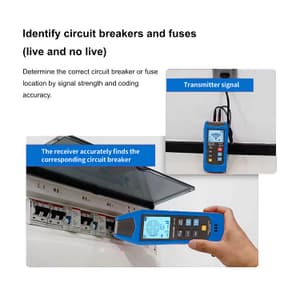

• Locate fuses and associated devices

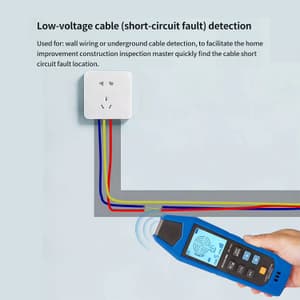

• Detect short circuits and open circuits in underfloor heating
• Trace metal water pipes and heating pipelines
• It is perfect for residential or commercial projects
• Sensitivity of the receiver is adjustable automatically or manually (3 levels)
• Built-in Flashlight
• Backlit Display
• Automatic shutdown function
• One receiver can support up to 8 transmitters

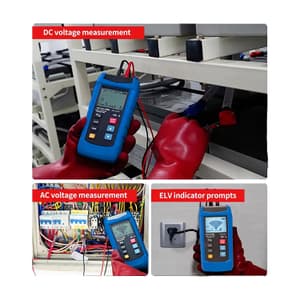

• Energised/Live wire detection: up to 480V(AC/DC)
• LED and buzzer indications
• CE, RoHS certified

Receiver (Technical Data):

• Working Frequency: 33 KHz
• Locating Depth: Related to the medium and the method used
• Tracking Mode for Single Pole: About 0~2.5 m (Use separate loop wire for 2.5 m)
• Tracking Mode for Dual Poles: About 0~0.5 m
• Grid Voltage Identification: About 0~0.4 m
• NCV: Non-contact Voltage identification range: 80~1000V, 50Hz/60Hz (Approach the measured cable)
• Display: Segmented, Backlit LCD (TN translucent)
• Power: 6 × 1.5V AAA (LR03) Alkaline Batteries
• Low Battery Indicator
• Built-in Flashlight
• Reception Sensitivity (Manual adjustment): Including 9 levels
• Signal Strength of Transmitter: 3 levels
• Analogue Bar Range of Signal Strength: 0~43
• Receive Multiple Transmission Signals: Supported (A receiver can receive signals generated by maximum 8 transmitters at the same time)

Package Content:

• 1x Pair dual in-line Test Leads (Red + Black)
• 1x Set Alligator Clips (Red + Black)
• 1x Pair Lantern-tip Test Probes (Red + Black)
• 1x AC Polarised Plug Wire
• 1x User Manual
• 6 x 1.5V AA Alkaline Batteries (LR06)
• 6 × 1.5V AAA Alkaline Batteries (LR03)
