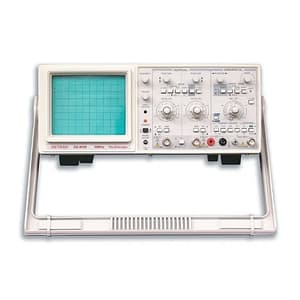

30MHz, Dual Trace Dual Channel Oscilloscope. OS-5030 is a portable Oscilloscope with frequency bandwidth of 0~30MHz and sensitivity of 5mV/DIV~20V/DIV. Equipped with 10:1 probe which makes the sensitivity up to 200V/div. Sweep rate at 0.5S/DIV ~ 0.2µS/DIV on horizontal system. The oscilloscope is easy to operate, and highly reliable. It is an ideal instrument for research, production, education, and development in electronic device or circuitry.

Safety Precaution:

The instrument complies with the requirements of the European Council Directive 89/336/EEC (EMC Directive) and 73/23/EEC (Low Voltage Directive).

The instrument is designed and tested in accordance with EN publication 61010, CAT II, Pollution degree II and Overvoltage 600V. The instrument has been tested in accordance to the following EC Directives (EMC):


• EN50082
• EN55011
• EN61000-3-2
• EN61000-3-3

Features:

• Dual Trace Dual Channel Oscilloscope
• Full bandwidth sweeping circuit is used in the sweeping system
• The flexible and convenient triggering mode has the functions for selecting signals from one channel or triggered by Ext signals
• ALT trigger to observe signals from two irrelative channels
• The instrument has the functions of TV-H / TV-V synchronization and trigger-lock to observe all kinds of signals stably
• From the terminal for trigger input, CH1 and CH2 signals can be output along with the triggering channel to connect the Ext frequency counter
• Y deflection operation: Y1, Y2, ALT, CHOP, ADD, mode X-Y
• Vertical Deflection: 5mV/Div to 20V/Div in factor 1-2-5 sequence in 12 steps
• Triggering Source: Y1, Y2, ALT, POWER, EXT
• Trigger Coupling: AC/DC (EXT), NORM/TV-H, TV-V
• Horizontal Sweep Mode: AUTO, TRIG, LOCK, SINGLE
• Sweep time factor: 0.1uS/div to 0.2s/div in 1-2-5 sequence in 20 steps
• X-Y Mode input: X-Axis YI and Y-Axis Y2
• Z Axis minimum input level: TTL Level
• Calibration Signal: Square wave of 0.5V at 1kHz
