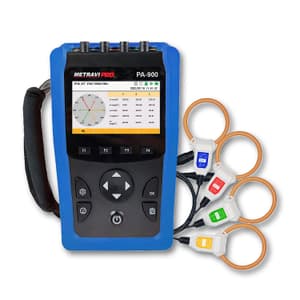

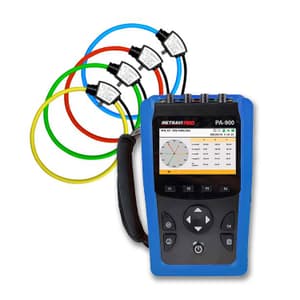

The Metravi PRO PA-900 3-Phase Power Quality & Harmonics Analyser, when externally connected with open type Rogowski coils or voltage type CTs, is capable of non-destructive wire testing with simplified test steps. It helps save construction costs, and is more convenient for engineering tests as well as aids in the inspection and maintenance of distribution systems.

Features:

• Supports single-phase and three-phase systems.
• It can measure multiple electrical parameters such as Current, Voltage, Power Factor, Power, Energy and Power Quality parameters including Harmonic, Unbalance degree, Voltage Swell and Voltage Dip, etc.
• In addition to the measurement function, the PA-900 is equipped with various records, such as waveform records and programmable interval measurement value records. To store and record data, it is internally embedded 32 GB memory card.

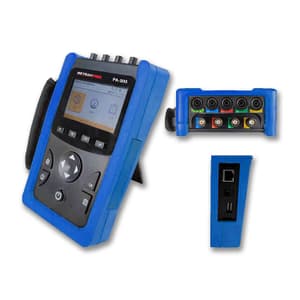

• With standard configuration of RJ45 Ethernet communication interface, through standard Modbus TCP protocol, it is compatible with various configuration systems and can transmit the electrical parameters collected by the front end to the system data center in real time.

Technical Data:

Frequency Accuracy	±0.001
Phase Voltage	0V to 600V (TRMS)
Phase Voltage Accuracy	±0.2%
Line Voltage	0V to 600V (TRMS)
Line Voltage Accuracy	±0.2%
Current	0A to 6000A (TRMS)
Current Accuracy	±0.2%
Reactive Power	Phase ABC and Total (Accuracy ±1.0%)
Power Factor	-1 to +1 (Accuracy ±0.005%)
Active Energy	999.9GWh, 9999.9MWh, Phase ABC and Total (Accuracy ±0.5%)
Reactive Energy	999.9GWhr, 9999.9MWhr, Phase ABC and Total (Accuracy ±1.0%)
Phase Angle	Phase ABC
Displacement Power Factor	Each Phase, Total
Other Functions	Phasor Diagram, Sag, Swell
DC Voltage Accuracy	±0.20%

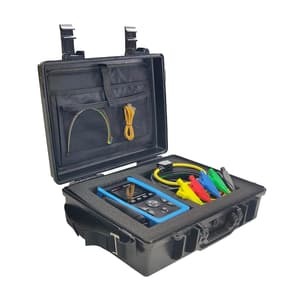

Package Content:

• Analyser
• 1m USB cable,
• 4 x Magnetic voltage sensing probes,
• 4 x Voltage sensing leads with crocodile clamps,
• Power Adaptor,
• USB Pendrive

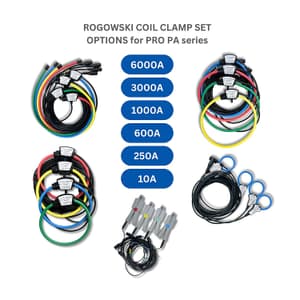

• Set of 4 Current Clamps (Optional Accessories)
