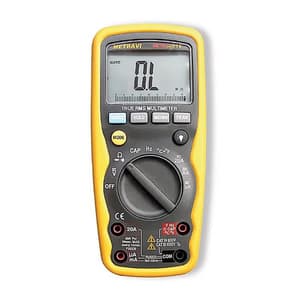

Metravi 3-3/4 Digits / 1000V Fully-Protected Digital TRMS Multimeter, Metrasafe-16
Roll over image to zoom zoom_in
- Weight: 375 Grams
- Product Type: Multimeter
- DC Voltage Resolution: 0.1mV to 1V
- DC Current Resolution: 0.1µA to 10mA
- Resistance Resolution: 0.1 to 10k Ohms
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹8124.3 (Incl. of all taxes)
₹6885+ ₹1239.3 GST (18%)
MRP ₹10125
SAVE 32%
5 Business Days
1 Pcs
90308990
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
3-3/4 Digits, Analogue Bargraph, T-RMS, Backlit LCD, Autoranging, Fully Protected, Data Hold, Max/Min, Peak Hold, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Temperature, Diode and Continuity Test. Confirms to CAT IV 600V.
Features:
- Fully Protected DMM
- 1200V DC/AC RMS Protection in Voltage Ranges
- 20A DC/AC RMS Protection in Ampere Ranges
- 600V DC/AC RMS Protection in Resistance, Capacitance, Frequency, Temperature, Continuity and Diode Test Ranges
- Surge Protection of 8kV Peak IEC61010
- “O” Ring Seal Body
- Overload Indication
- Low Battery Indication
- Dust & Water Proof IP67
- T-RMS measurement, Peak Hold, Relative Measuring
- MAX / MIN Recording,
- Auto Power Off
- Display: 3-¾ Digits 4000 Counts Backlit LCD with Analog Bargraph
- DC Voltage: 0 – 400mV/4V/40V/400V/1000V
- Accuracy: ± 0.5%
- AC Voltage: 0 – 400mV/4V/40V/400V/1000V T-RMS
- Accuracy: ± 0.8%
- DC Current: 0 – 400uA/4000uA/40mA/400mA/20A
- Accuracy: ± 1.2%
- AC Current: 0 – 400uA/4000uA/40mA/400mA/20A T-RMS
- Accuracy: ± 1.5%
- Capacitance: 0 – 4nF/40nF/400nF/4uF/40uF/400uF/4mF/40mF
- Accuracy: ± 3%
- Frequency: 0 – 4kHz/40KHz/400KHz/40MHz
- Accuracy: ± 1.2%
- Temperature: -20°C to +760°C / -4°F to +1400°F
- Accuracy: ± 3%
- Diode Test and Audible Continuity Test
- Confirms to CAT-III 1000V, CAT-IV 600V, EN61010-1, CE
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00080 |
|---|---|
| Product Type | Multimeter |
| Model No | Metrasafe16 |
| Display | Backlit LCD |
| Colour | Yellow-Black |
| Polarity | Automatic |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| Bargraph | Analogue Bargraph |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 0.1mV to 1V |
| DC Current Resolution | 0.1µA to 10mA |
| AC Current Resolution | 0.1uA to 10mA |
| Resistance Resolution | 0.1 to 10k Ohms |
| Capacitance Resolution | 1pF to 0.01mF |
| Frequency Resolution | 1Hz to 1kHz |
| Temperature Resolution | 1°C |
| Certifications | CAT III 1000V, CAT IV 600V, EN 61010-2-32, EN-61010-1 |
