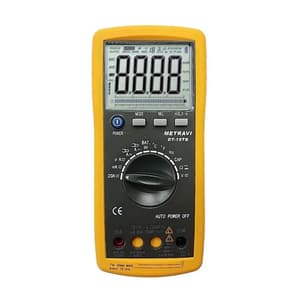

3-3/4 Digits, Backlit LCD, Auto-ranging, Terminal Blocking Facility, Relative & Data Hold, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Temperature, Battery Test, Diode & Continuity Test. Overload Protection of 500V DC/AC RMS in all ranges.

Features:

• Auto Ranging
• Low Battery Indication
• Terminal Blocking Facility to prevent wrong connection.
• Overload Protection of 500V DC/AC RMS in the Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Battery Test, Diode Test and Continuity Test Facilities.
• 20A AC/DC Fuse Protected
• Double Molded Housing.
• Data Hold to freeze the displayed data
• Auto Power Off
• Display: 3-¾ Digits 4000 Counts Extra Large Backlit LCD
• DC Voltage: 0 – 400mV/4V/40V/400V/1000V
• Accuracy: ± 0.5%
• AC Voltage:  0 – 4V/40V/400V/1000V
• Accuracy: ± 1.2%
• DC Current: 0 – 400uA/4000uA/40mA/400mA/4A/20A
• Accuracy: ± 1.0%
• AC Current: 0 – 400uA/4000uA/40mA/400mA/4A/20A
• Accuracy: ± 1.5%
• Resistance: 400Ω/4kΩ/40KΩ/400KΩ/4MΩ/40MΩ
• Accuracy: ± 1.0%
• Capacitance: 0 – 40nF/400nF/4uf/40uF/100uF
• Accuracy: ± 3.0%
• Frequency: 0 – 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
• Accuracy: ± 1.2%
• Duty Cycle: 0.1% to 99.9%
• Accuracy: ± 1.2%
• Temperature:  -20°C to +760°C / -4°F to +1400°F
• Accuracy:  ± 3%
• Battery Test: 9V range
• Accuracy: ± 1%
• Clamp-On AC/DC Current Adaptor  can be used to measure 0 – 400A AC/DC
• Accuracy shall be ± 1.5% for AC Measurement and ± 1.0% for DC Measurement.
• Diode Test and Audible Continuity Test
• Confirms to CAT-II 1000V, EN61010-1, CE.
