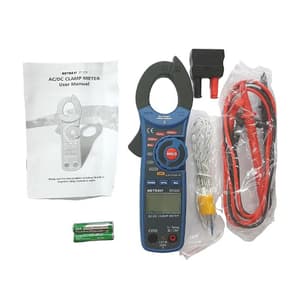

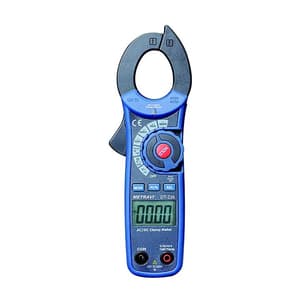

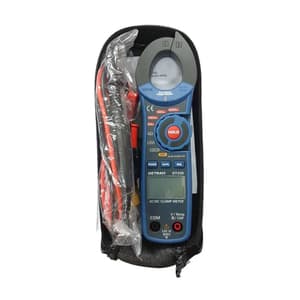

Metravi 3-3/4 Digit / 400A Digital AC/DC Clamp Meter With Non Contact Voltage Detector, DT-230
Roll over image to zoom zoom_in
- Weight: 0.21 Kg
- Product Type: Clamp Meters
- AC Current Range: 0–40A/400A
- DC Current Range: 0–40A/400A
- Frequency Range: 10Hz to 10kHz
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹5530.66 (Incl. of all taxes)
₹4687+ ₹843.66 GST (18%)
MRP ₹6892
SAVE 32%
5 Business Days
1 Pcs
90303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
3-3/4 Digits, LCD, Data Hold, 30mm Jaw Size, AC/DC Voltage, AC/DC Current up to 400A, Resistance, Capacitance, Temperature, Frequency, Diode & Continuity Test.
Features:
- Data Hold Facility
- Built-in Non Contact Voltage Detector
- Fully Protected up to 600V DC/AC RMS in all ranges including Frequency, Resistance, Capacitance and Continuity test
- Low Battery and Over Range Indication
- Display: 3-3/4 Digits 3999 Counts Backlit LCD
- Confirms to CAT III 600V
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.CL.00053 |
|---|---|
| Product Type | Clamp Meters |
| Model No | DT230 |
| Display | Backlit LCD |
| Jaw Dia | 30 mm |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AAA |
| No of Batteries | 2 |
| AC Current Range | 0–40A/400A |
| AC Current Accuracy | ±2.5% |
| DC Current Range | 0–40A/400A |
| DC Current Accuracy | ±2.5% |
| DC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 600V |
| DC Voltage Accuracy | ±0.8% |
| Resistance Range | 0 – 400O / 4kO / 40kO / 400kO / 4MO / 40MO |
| Resistance Accuracy | ±1.0% |
| Capacitance Range | 0–40nF/400nF/4uF/40uF/100uF |
| Capacitance Accuracy | ±3.0% |
| Frequency Range | 10Hz to 10kHz |
| Frequency Accuracy | ±1.5% |
| Temperature Range | -20°C to 760°C |
| Temperature Accuracy | ±3% |
| Certifications | CAT-III 600V, CE, IEC 61010, Pollution Grade 2 |
