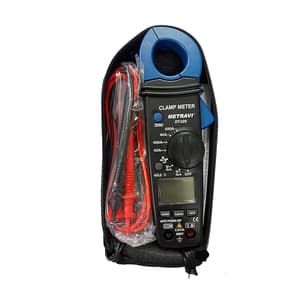

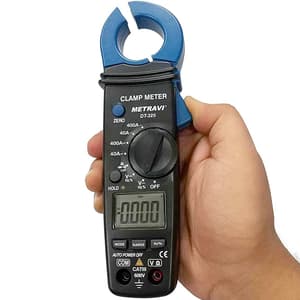

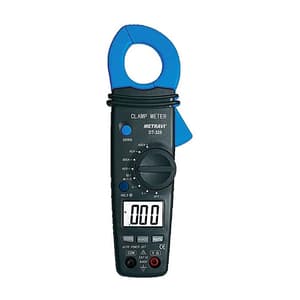

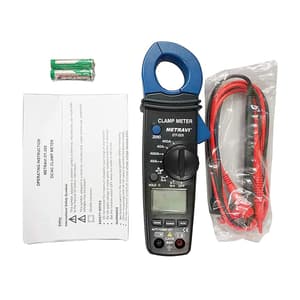

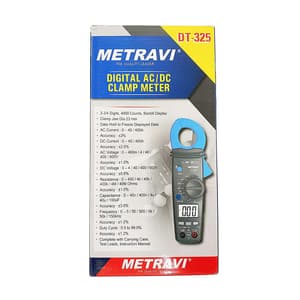

Metravi 3-3/4 Digit / 400A Digital AC/DC Clamp Meter, DT-325
- Weight: 0.2 Kg
- Product Type: Clamp Meters
- DC Current Range: 0–40A/400A
- AC Current Range: 0–40A/400A
- DC Voltage Range: 0–4V/40V/400V/600V
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹4028.52 (Incl. of all taxes)
₹3414+ ₹614.52 GST (18%)
MRP ₹5021
SAVE 32%
5 Business Days
1 Pcs
90303390
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
3-3/4 Digits 3999 Counts, Digital AC/DC Clamp Meter, Confirming to CAT-III 300V, Jaw Size 28 mm, Auto Power Off, Data Hold, AC/DC Voltage up to 600V, AC/DC Current up to 400A, Resistance, Frequency, Duty Cycle, Diode & Continuity Test Facility.
Safety:
For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Cat. III
Features:
- 3-3/4 Digits 3999 Counts LCD Display
- Data Hold Function
- Auto Power Off
- Jaw Size: 28mm
- Data Hold
- Overload Indication
- Auto Power Off
- Overload Protection
- Low Battery Indication
- Diode & Continuity
- Confirms to CAT III 300V, IEC 61010
- CE Certificate
- 9V Battery Operated
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.CL.00054 |
|---|---|
| Product Type | Clamp Meters |
| Model No | DT325 |
| Display | Backlit LCD |
| Jaw Dia | 23 mm |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AAA |
| No of Batteries | 2 |
| Colour | Blue-Black |
| DC Current Range | 0–40A/400A |
| DC Current Accuracy | ±2.5% |
| AC Current Range | 0–40A/400A |
| AC Current Accuracy | ±3.0% |
| DC Voltage Range | 0–4V/40V/400V/600V |
| DC Voltage Accuracy | ±0.8% |
| AC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 600V |
| AC Voltage Accuracy | ±1.0% |
| Resistance Range | 0 – 400O / 4kO / 40kO / 400kO / 4MO / 40MO |
| Resistance Accuracy | ±1.0% |
| Capacitance Range | 0–40nF/400nF/4uF/40uF/100uF |
| Capacitance Accuracy | ±3.0% |
| Frequency Range | 0-5Hz/50Hz/500Hz/5kHz/50kHz/150kHz |
| Frequency Accuracy | ±1.2% |
| Duty Cycle Range | 0.5% to 99% |
| DC Current Resolution | 0-20A/40A/300A/400A |
| AC Current Resolution | 0-20A/40A/300A/400A |
| Certifications | CAT-III 600V, CE, IEC 61010 |
