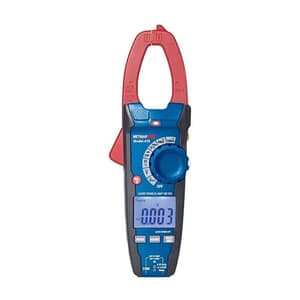

Metravi 3-3/4 Digit / 1000V Digital TRMS AC/DC Clamp Meter, Pro 419

Shop all Metravi

SKU: ME.EL.CL.00072

Model: Pro419

Roll over image to zoom zoom_in
  1. Metravi 3-3/4 Digit / 1000V Digital TRMS AC/DC Clamp Meter, Pro 419
  2. Metravi 3-3/4 Digit / 1000V Digital TRMS AC/DC Clamp Meter, Pro 419
  3. Metravi 3-3/4 Digit / 1000V Digital TRMS AC/DC Clamp Meter, Pro 419
  4. Metravi 3-3/4 Digit / 1000V Digital TRMS AC/DC Clamp Meter, Pro 419
  5. Metravi 3-3/4 Digit / 1000V Digital TRMS AC/DC Clamp Meter, Pro 419
  6. Metravi 3-3/4 Digit / 1000V Digital TRMS AC/DC Clamp Meter, Pro 419
  7. Metravi 3-3/4 Digit / 1000V Digital TRMS AC/DC Clamp Meter, Pro 419
Video

  • Product Type: Clamp Meters
  • AC Current Range: 0-400A/1000A
  • AC Voltage Range: 0-4V/40V/400V/1000V
  • DC Voltage Range: 0 – 400mV / 4V / 40V / 400V / 1000V
  • Jaw Dia : 34 mm
  • Temperature Range: -20°C to 1000°C
  • Sampling Time: 2 times/sec
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

7804.52 (Incl. of all taxes)

6614+ ₹1190.52 GST (18%)

MRP ₹9727

SAVE 32%



5 Business Days

1 Pcs

90303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

3-3/4 Digits Professional T-RMS AC/DC Clamp Meter, 4000 Counts, 1000V AC T-RMS/DC, 1000A AC T-RMS/DC, Auto Power Off, Non-Contact Voltage Detector, Flashlight, Data Hold, MAX-MIN Record, Relative Measurement, 100mF Capacitance, 100kHz Frequency, 40MΩ Resistance, 1000°C Temperature measurement using K type sensor, Continuity.

METRAVI-PRO 419 is the most complete AC T-RMS / DC clamp meter with data hold, backlit LCD Display, Built-in Flash light to measure in dark areas and Non contact Voltage Detector The instrument confirms to CAT-IV 600V, CAT-III 1000V, CE, IEC-61010-1. It has 35mm Clamp Jaw Dia. With Max / Min / Data Hold facility, the clamp meter is complete on-the-go measuring instrument.


Features:

  • Professional T-RMS AC/DC Clamp Meter
  • 4000 Counts, 3-3/4 Digits Backlit LCD Display
  • Confirms to CAT-IV 600V, CAT-III 1000V, CE, IEC-61010-1
  • 600V AC/DC Protection in all ranges
  • 34 mm Clamp Jaw Dia
  • Auto Power Off,
  • Non Contact Voltage Detector
  • Flash light in the Jaw to access dark Areas
  • Double Injection Housing, providing double insulation
  • Data Hold, MAX-MIN Record, Relative Measurement
  • 1000V AC T-RMS/DC
  • 1000A AC T-RMS/DC
  • 100mF Capacitance, 100kHz Frequency, 40MOhms Resistance
  • Temperature upto 1000°C using K type sensor
  • Temperature measurement in °C / °F scales


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.CL.00072
Product TypeClamp Meters
Model NoPro419
AC Current Range 0-400A/1000A
DC Current Range 0-400A/1000A
AC Voltage Range 0-4V/40V/400V/1000V
DC Voltage Range 0 – 400mV / 4V / 40V / 400V / 1000V
Flashlight Flashlight for working in dark areas
Jaw Dia 34 mm
Colour Black-Blue-Red
Display Backlit LCD
Duty Cycle Range 10% to 90%
Temperature Range -20°C to 1000°C
Power Source Battery Operated
Battery Size AAA
Battery Type Alkaline
No of Batteries 3
Sampling Time 2 times/sec
Resistance Range 0 – 400O / 4kO / 40kO / 400kO / 4MO / 40MO
Capacitance Range 0-40nF/400nF/4µF/40µF/400µF/4mF/40mF/100mF
Frequency Range 9.999Hz to 99.99kHz
AC Current Accuracy ±2.5%
DC Current Accuracy ±2.5%
AC Voltage Accuracy ±1.5%
DC Voltage Accuracy ±1.5%
Resistance Accuracy ±1.0%
Capacitance Accuracy ±3.0%
Frequency Accuracy ±1.2%
Temperature Accuracy ±3%
Certifications CAT III 1000V, CAT IV 600V, CAT-III 600V, CE, IEC-61010-1
