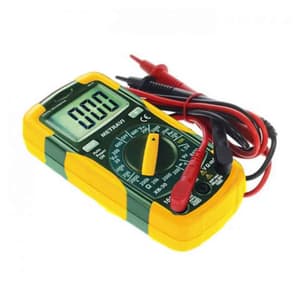

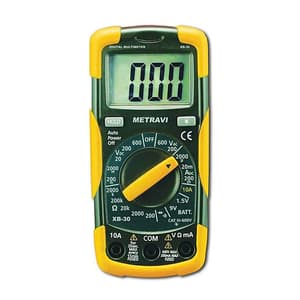

Metravi 3-1/2 Digits / 600V Digital Multimeter, XB-30
Roll over image to zoom zoom_in
- Weight: 255 Grams
- Product Type: Multimeter
- DC Voltage Range: 0–200mV/2V/20V/200V/600V
- AC Voltage Range: 0-200V/600V
- DC Current Range: 0-2000µA/20mA/200mA/10A
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹1624.86 (Incl. of all taxes)
₹1377+ ₹247.86 GST (18%)
MRP ₹2025
SAVE 32%
5 Business Days
1 Pcs
90308990
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
3-1/2 Digits, Backlit LCD, Fully Protected, Data Hold, AC Voltage, DC Voltage, DC Current, Resistance, Diode & Continuity Test.
Safety:
For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Category III.
Features:
- Display: 1999 (3 ½) Count , 15mm Backlit LCD
- Auto Power Off
- Overload Indication
- Low Battery Indication
- Over Load Protection of 500V DC/AC RMS

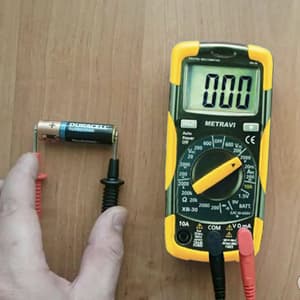

- Battery Test: 9V/1.5V
- With Diode Test, Continuity Test and Data Hold.
- Operating Temperature 32 deg * F to mathcal 122 deg * F (0 deg * Cto * 50 deg * C)
- Storage Temperature - 4 deg * F to 140 deg * F ( - 20 deg * C to 60 deg * C )
- Relative Humidity <70% operating, <80% storage
- Operating Altitude 7000ft. (2000) meters maximum.
- Confirms to CE, CAT-III 600V, IEC 1010-1
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
SKU | ME.EL.MU.00060 |
---|---|
Product Type | Multimeter |
Model No | XB30 |
Display | Backlit LCD |
Colour | Yellow-Black |
Polarity | Automatic |
Sampling Time | 2 times/sec |
Power Source | Battery Operated |
Battery Type | Alkaline |

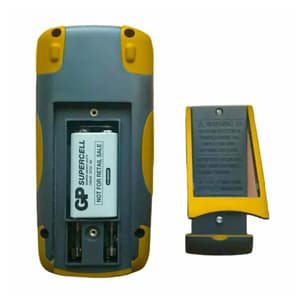

Battery Size | 9V |
No of Batteries | 1 |
DC Voltage Range | 0–200mV/2V/20V/200V/600V |
DC Voltage Accuracy | ±0.5% |
AC Voltage Range | 0-200V/600V |
AC Voltage Accuracy | ±1.2% |
DC Current Range | 0-2000µA/20mA/200mA/10A |
DC Current Accuracy | ±1% |
Resistance Range | 0-200/2k/20k/200k/2M Ohms |
Resistance Accuracy | ±1.0% |
DC Voltage Resolution | 0.1mV to 1V |
AC Voltage Resolution | 0.1V to 1V |
DC Current Resolution | 1µA to 10mA |
Resistance Resolution | 0.1 to 1k Ohms |
Certifications | CAT-III 600V, CE, IEC 1010-1 |
