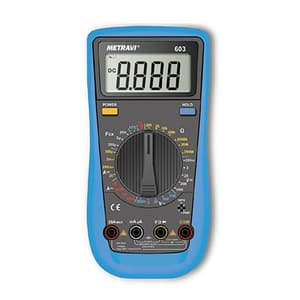

Metravi 3-1/2 Digits / 1000V Digital Multimeter, 603

Shop all Metravi

SKU: ME.EL.MU.00062

Model: 603

Roll over image to zoom zoom_in
  1. Metravi 3-1/2 Digits / 1000V Digital Multimeter, 603
  2. Metravi 3-1/2 Digits / 1000V Digital Multimeter, 603
  3. Metravi 3-1/2 Digits / 1000V Digital Multimeter, 603

  • Weight: 318 Grams
  • Product Type: Multimeter
  • DC Voltage Range: 0-200mV/2V/20V/200V/1000V
  • AC Voltage Range: 0-200mV/2V/20V/200V/750V
  • AC Current Range: 0-200uA/2mA/200mA/20A
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

2275.04 (Incl. of all taxes)

1928+ ₹347.04 GST (18%)

MRP ₹2835

SAVE 32%



5 Business Days

1 Pcs

9030

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Metravi 603 Digital Multimeter is a 31⁄2 digits meter with steady operations, and highly reliable hand-held measuring instrument having different measurement positions. The 603 can not only measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode & Continuity Test, and Transistor Test but also has range display.


Features:

  • Auto Power Off
  • Overload Indication
  • Low Battery Indication
  • Data Hold to freeze the displayed reading
  • Display: 3-1/2 digits 1999 Counts Backlit Extra Large LCD
  • With Diode Test, Transistor Test, and Audible Continuity Test Facility.
  • Operating temperature : 0°C to + 50°C-70% RH.
  • Storage temperature : -20°C to 60°C, 0-80% RH with battery removed
  • Accuracy : Accuracy specifications at 23 ± 5°C less than 75% RH
  • CAT II 600V

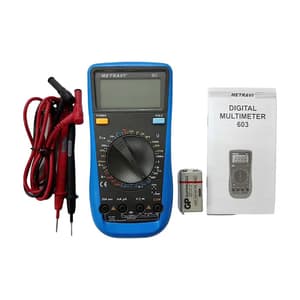

What's Included In This Package:

  • Test leads
  • Spare Fuse
  • Operating Manual
  • Battery
  • Carrying Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.MU.00062
Product TypeMultimeter
Model No603
Display Backlit LCD
Colour Blue-Black
Sampling Time 3 times/sec
Power Source Battery Operated
Battery Size 9V
No of Batteries 1
Battery Type Alkaline
DC Voltage Range 0-200mV/2V/20V/200V/1000V
DC Voltage Accuracy ±0.5%
AC Voltage Range 0-200mV/2V/20V/200V/750V
AC Voltage Accuracy ±0.8%
AC Current Range 0-200uA/2mA/200mA/20A
AC Current Accuracy ±1.2%
DC Current Range 0-200uA/2mA/200mA/20A
DC Current Accuracy ±0.8%
Capacitance Range 0-20nF/2uF/200uF
Capacitance Accuracy ±4.0%
Resistance Range 0-200/2k/20k/200k/2M/20M/200M
Resistance Accuracy ±0.8%
DC Voltage Resolution 0.1mV to 1V
AC Voltage Resolution 0.1mV to 1V
DC Current Resolution 0.1µA to 10mA
AC Current Resolution 0.1uA to 10mA
Capacitance Resolution 10pF to 100nF
Resistance Resolution 0.1 to 100k
Certifications CAT II 600V
