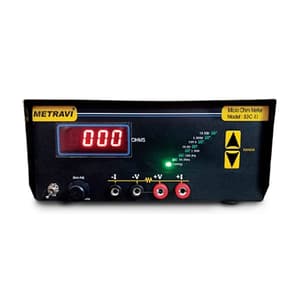

Metravi Digital Micro Ohm meter Model 53C-II, is a compact high reliability 3 ½ digit instrument suitable for measurement of resistivity of copper wires from 7/0 SWG to 50 SWG, resistance of cables, windings coils, heater elements and contact resistances of switches, relays etc. Emphasis in the design of this instrument has been to provide quick, stable and repeatable readings of resistance.

The instrument uses a 4 terminal measurement so that resistance of test leads and contacts is eliminated from test results. Actual value of resistor is directly displayed in the seven segment 12.5mm display.


Features & Benefits:

• No Mechanical Switch
• Micro-processor Based
• Compact Highly Reliable 3-1/2 Digit Instrument
• Uses 4 Terminal Measurement method
• Has 12.5 mm high 7 segment 3-1/2 Digits LED Display
• Range : 0 – 1999u / 19.99m / 199.9m / 1.999 / 19.99 / 199.9 / 1999 /19.99K Ohms
• Accuracy : + 0.3% + 2 dgs
• Normal Test Current : 1.5A / 0.75A / 0.75A / 75mA / 7.5mA / 0.75mA / 0.075mA
• Warm up Time : 3 minutes
• Input : 230V Single Phase AC 50Hz

What's Included In This Package:

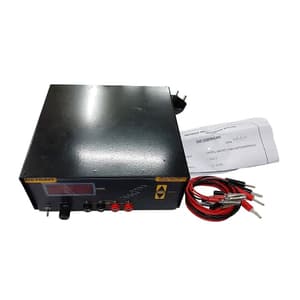

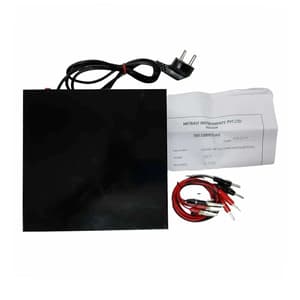

• 1x Metravi 53C-II Micro Ohms Meter
• 1x Instruction manual
• 1x Mains chord
• 1x Test leads

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
