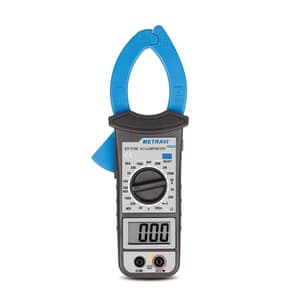

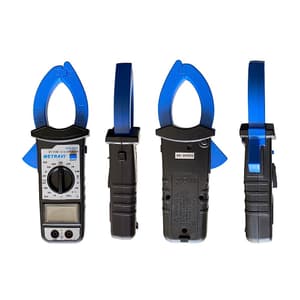

Metravi 3-1/2 Digit / 2000 Counts Digital AC Clamp Meter, DT-1150

Shop all Metravi

SKU: ME.EL.CL.00082

Model: DT1150

Roll over image to zoom zoom_in
  1. Metravi 3-1/2 Digit / 2000 Counts Digital AC Clamp Meter, DT-1150
  2. Metravi 3-1/2 Digit / 2000 Counts Digital AC Clamp Meter, DT-1150
  3. Metravi 3-1/2 Digit / 2000 Counts Digital AC Clamp Meter, DT-1150
  4. Metravi 3-1/2 Digit / 2000 Counts Digital AC Clamp Meter, DT-1150

  • Weight: 0.35 Kg
  • Product Type: Clamp Meters
  • AC Current Range: 0-20A/200A/1000A
  • AC Voltage Range: 0-200V/750V
  • DC Voltage Range: 0-200mV/2V/20V/200V/1000V
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

2193.62 (Incl. of all taxes)

1859+ ₹334.62 GST (18%)

MRP ₹2734

SAVE 32%



5 Business Days

1 Pcs

90303100

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

DT-1150 Digital clamp meter has a 3-1/2 digit 2000 Count LCD display and is powered by two AAA Batteries. The unit adopts full function overload protection circuit and can be used for the measurement of AC/DC voltage, AC current, DC current, Resistance, Diode and Continuity. It has a sturdy built and adopts a rotary switch that integrates Power on/off, Function selection and Range selection. It is handy and portable making it the ideal tool for electrical measurement.


Features:

  • Display : 3 ½ Digit 2000 count LCD, with auto polarity conversion
  • Over-Range Indication : "OL" will be shown on the LCD
  • Low Battery Display : symbol appears
  • Working Environment : 0~40°C, 45% ~ 70% RH Non Condensing (When temperature is less than 10°C)
  • Storage Environment : -10°C~50°C, RH is less than 80%
  • Warranty is one year against manufacturing defects
  • Data Hold
  • Overload Indication
  • Low Battery Indication
  • Diode & Continuity test

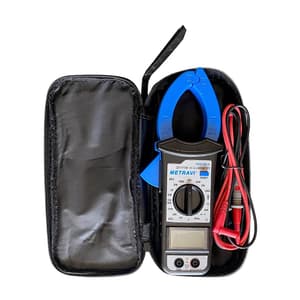

What's Included In This Package:

  • 1x User Manual
  • 1x Test Leads
  • 2x Batteries
  • 1x Soft carry case


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.CL.00082
Product TypeClamp Meters
Model NoDT1150
AC Current Range 0-20A/200A/1000A
AC Voltage Range 0-200V/750V
DC Voltage Range 0-200mV/2V/20V/200V/1000V
Resistance Range 0 to 20MO
Colour Blue-Black
Display LCD
Power Source Battery Operated
Battery Type Alkaline
Battery Size AAA
No of Batteries 2
Jaw Dia 40 mm
Resistance Accuracy ±1.5%
DC Voltage Accuracy ±0.8%
AC Voltage Accuracy ±1.5%
AC Current Accuracy ±2.0%
DC Voltage Resolution 0.1mV to 1V
AC Voltage Resolution 0.1V to 1V
AC Current Resolution 0.01A to 1A
Resistance Resolution 0.1O to 10kO
Certifications CAT-III 600V, CE, IEC-61010-1, IEC-61010-2-032, Pollution Grade 2
Length x Width x Height (mm) 250 x 97 x 48
