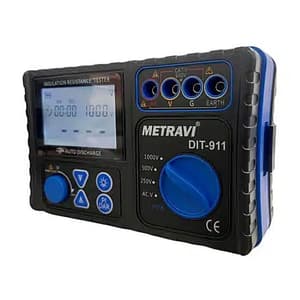

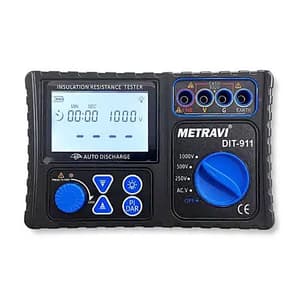

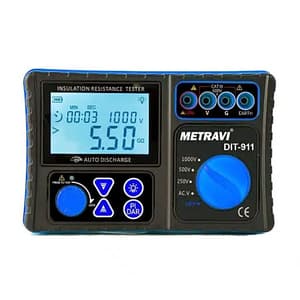

The Metravi DIT-911 is a handy, multi-functional, Digital Insulation Resistance Tester with 3 1/2 Digits 1999 Counts Backlit Display, and measures 0.00MΩ~11.0GΩ at 250V / 500V / 1000V, with high accuracy.

It also measures DC Open Circuit Voltage, Short Circuit Current, Rated Test Current, AC Voltage Test, PI, DAR and has an Automatic Discharge function.

Features:

• 3-1/2 Digits 1999 Counts LCD Backlit Display
• Backlight On/Off function
• Lock function for hands-free operation
• Insulation Resistance Range: 0.00MΩ~99MΩ, Accuracy ±3%+5dgt; 100MΩ~11.0GΩ, Accuracy ±5%+5dgt;
• Rated Voltage Range: 250V / 500V / 1000V
• PI - Polarisation Index measurement
• DAR - Insulation Resistance Value Absorption Ratio
• DC Open Circuit Voltage
• Short Circuit Current
• Rated Test Current
• AC Voltage Test
• PI – Polarisation Index measurement
• DAR – Insulation Resistance Value Absorption Ratio
• Automatic Discharge function
• Complies to IEC 61010-1, CATIII 600V
• Double-insulated Housing
• Alarm function
• Battery Operated

Technical Specifications:

Rated Voltage	250V MAX:5.5GΩ	500V MAX:5.5GΩ	1000V MAX:11.0GΩ
Range of Accuracy	0.00MΩ~99MΩ:± (3 %+5dgt; 100MΩ~11.0GΩ:± (5 %+5dgt)
Measuring Range	0.00MΩ~11.0GΩ (When the value is less than or equal to 4.0 MΩ, the buzzer alarms
DC Open Circuit Voltage	250V ±10%	500V ±10%	1000V ±10%
Rated Test Current	250KΩ load 0.9mA~1.1mA	500KΩload 0.9mA~1.1mA	1MΩload 0.9mA~1.1mA
Short Circuit Current	Approximately less than 1.8mA
AC Voltage Test
Measuring range	AC30V~ AC750V(50Hz/60Hz)Resolution:1V
Accuracy	±(2%+3dgt

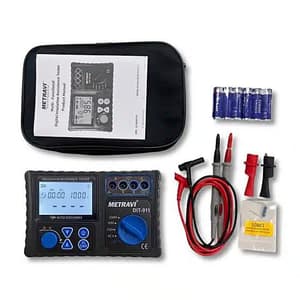

What's Included In This Package:

• 1x Test Leads
• 1x Pair Crocodile Clips
• 1x 10MΩ Standard Resistor
• 1x User Manual

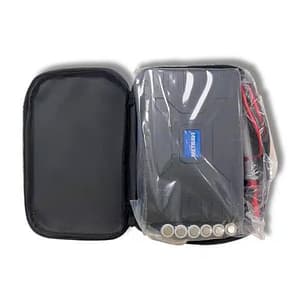

• 1x Soft Carrying Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
