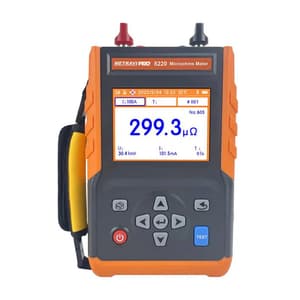

The Metravi PRO 8220 Micro Ohms Meter is designed to measure the Contact Resistance of various high voltage switches and circuit breakers, connection resistance of metal welding components, metal conductor Loop Resistance and precision Micro Ohm Resistance. With a high speed micro-controller at the core, the device combines high precision A/D convertor, digital measurement technology, anti-power frequency interference technology, and advance program-controlled current source technology, so that the built-in, high capacity, rechargeable Lithium batteries product no ripples.

Maximum output is 220A DC and the output current can be fine-tuned every 2.5A steps, up to 87 current gears, to meet the Multi-current Gear Test. At the same time, the user can set the time (10s, 20s, 30s, 40s, 50s, 60s), continuously output large Current Test and can test with high precision, high stability and high intelligence, even in strong interference environments.

The instrument features circuit protection and overheat protection. It comes with a 5.6 inch large, colour, LCD display, which is clear and intuitive. Equipped with standard resistors, the accuracy of the instrument can be self-inspected before the formal test. Wide-range, large Data Storage capacity, strong anti-interference ability and simple operation make this handheld, small size, easy-to carry device, a valuable tool for the field. It can also be equipped with printer for data printing (optional).

Features & Benefits:

• Data Deletion
• Data Query

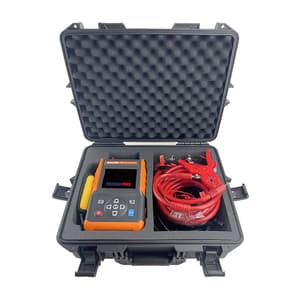

What's Included In This Package:



Measurement Range: ≤5A: 1μΩ – 3500mΩ 10A: 0.1µΩ – 200mΩ 30A: 0.1μΩ – 20μΩ 50A: 0.01μΩ – 15mΩ 80A: 0.1μΩ – 1mΩ 100A: 0.01μΩ – 5mΩ 200A: 0.01μΩ – 600uΩ 220A: 0.1μΩ – 500uΩ

Accuracy: 30A~220A ±(reading*0.1%+measurement range*0.2%+1μΩ) 10A or less than 5A ±(reading*0.5%+measurement range*0.2%+10μΩ)

Measurement Time: ≤100A fast mode (recommended), 10s, 20s, 30s, 40s, 50s, 60s >100A fast mode

Safety Standards: IEC61010-1 CATIII 600V Pollution Level 2 JJG724-1991 Verification Regulation of DC Digital Ohmmeter JJG166-1993 Verification Regulation of DC Resistors DL/T967-2005 Verification Regulation of Loop Resistance Tester DC Resistance High-speed Tester
