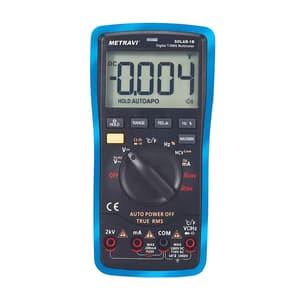

The Metravi Solar-1B Digital T-RMS Multimeter is a high-performance, battery driven, and highly reliable instrument. It adopts a large, backlit LCD display with clear readings and an overload protection function. It can measure 2000V AC/ DC Voltage, DC Voltage, True RMS AC Voltage and Average values, DC Current, AC Current, Resistance, Capacitance, Frequency, Diode and Temperature. It features intelligent voice alarm values and high voltage diode output measurement.

Compared to traditional diode measurement, the Metravi Solar- 1B provides a voltage of 1V higher, making it more convenient for maintenance personnel to measure various LEDs. The entire device is equipped with dual integral A/D transformed into the core and it is a high-performance tool and instrument. It’s an ideal tool for laboratories, factories and radio enthusiasts.

Features:

• TRMS Measurements

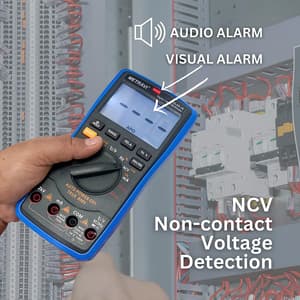

• Non-contact Voltage Detection
• Over Range display
• Low Voltage Display
• Auto Power Off
• Live Wire detection
• Diode Test
• Overload Protection

Specification:

DC Voltage Range	1000V, 600V, 60V, 6V
DC Voltage Resolution	1mV, 100mV, 10mV, 1V
AC Current Range	600mA, 60mA
AC Current Resolution	100mA, 10mA
AC Voltage Range	2000V, 200V, 60V, 6V, 750V
AC Voltage Resolution	1mV, 100mV, 10mV, 1V
Capacitance Range	600nF, 600µF, 60mF, 60nF, 60µF, 6mF, 6µF
Capacitance Resolution	100nF, 100pF, 10mF, 10nF, 10pF, 1mF, 1nF
DC Current Range	600mA, 60mA
DC Current Resolution	100µA, 10µA
Resistance Range	600kΩ, 600Ω, 60kΩ, 60MΩ, 6kΩ, 6MΩ
Resistance Resolution	0.1Ω, 1Ω, 100Ω, 10kΩ, 10Ω, 1KΩ
Temperature Range	0 ~ 1832°F, 20 ~ 1000°C
Temperature Resolution	1°C, 1°F
Frequency Range	100Hz, 100kHz, 10Hz, 10kHz, 10MHz, 1kHz, 1MHz
Frequency Resolution	0.01Hz, 0.1Hz, 1Hz, 100Hz, 10Hz, 10kHz, 1kHz
