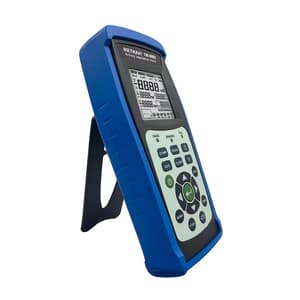

The Metravi TM-6002 Battery Impedance Tester is used to check Internal Resistance, Voltage, Current and Temperature for batteries. It is designed for measuring the internal impedance and open circuit voltage of the secondary batteries, including Nickel-metal Hydride (NiMH), Nickel-cadmium (NiCd), Lithium-ion (Li-ion), Alkaline and Lead-acid batteries.

With quick response time, it simultaneously displays the results of Battery Impedance and Voltage measurements. Features a built-in comparator function to rate the conditions as pass, warning or fail. The Metravi TM-6002 is an ideal tester for Automotive applications, UPS maintenance and Telecommunication applications.

Features:

• Measures internal impedance and open circuit voltage of the secondary batteries, including Nickel-metal Hydride (NiMH), Nickel-cadmium (NiCd), Lithium-ion (Li-ion), Alkaline and Lead-acid batteries.

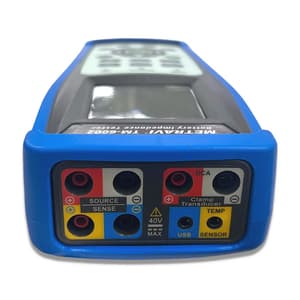

• AC four-terminal method to measure the internal impedance by eliminating lead impedance and contact impedance to get accurate results.

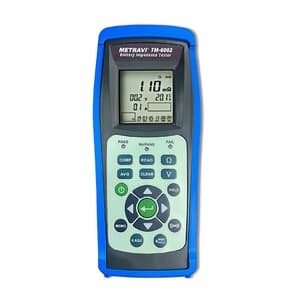

• Multi-display to show the internal impedance, voltage and clock of the battery simultaneously.
• It has 99 sets of composite comparator function, which can be set at impedance and voltage values to reliably detect battery deterioration.
• 9999 sets of data memory.
• Pin type leads, which can easily contact the battery electrodes are supplied as standard accessory and helps get more accurate 4-terminal measurements.
• Large Backlit LCD Display
• An ideal tester for automotive, UPS maintenance and telecommunication applications.
• Resistance Measurement: 10uΩ to 40Ω
• Voltage Measurement: 1mV to 40V
• Temperature Measurement: -20° to 60°C
• DC Current Measurement: 0.6A to 700A DC

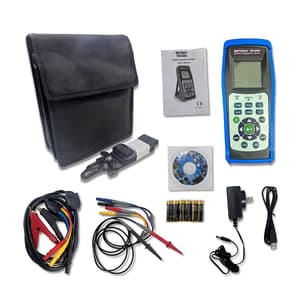

What’s Included In This Package:

• One set of Testing Clips
• Instruction Manual
• Batteries
• Software CD
• USB Cable
• Carrying Case

Electrical Specifications:

To ensure accuracy the ambient temperature should be 23ºC ± 5ºC with a humidity of 80% RH (maximum) non- condensing. In addition, perform a Zero adjustment after each range change.

Resistance measurements

• Temperature coefficient : (±0.1%rdg ±0.5digits)ºC
• Measurement current frequency : 1KHZ ±30HZ.
• Measurement open-circuit terminal voltage : 7Vp-p



Range	Resolution	Measurement current	Accuracy
40m Ω	10 µΩ	100mA approx	(±0.8% reading ±10 digits)
400m Ω	100 µΩ	15mA approx
4 Ω	1m Ω	1.5mA approx
40 Ω	10m Ω	150 µA approx



Voltage Measurements
Temperature coefficient : (±0.1%rdg ±0.5digits)ºC

Range	Resolution	Accuracy
4V	1mV	(±0.8% reading ±6 digits)
40V	10mV

Temperature measurement

Measurement Range	Resolution	Accuracy
-20ºC ~ 60ºC (-4ºF ~ 140ºF)	0.1ºC (0.1ºF)	±1.0ºC ±1.8ºF

DC Current (DCA) measurement

Range	Sensitivity	Resolution	Accuracy
700A	0.6A ~ 700.0A	0.1A	(±2.0% reading ±5 digits)
