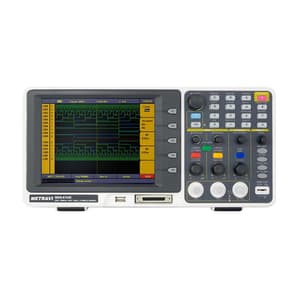

Metravi 100MHz Mixed Signal Oscilloscope With Logic Analyser, MSO-6102E

Shop all Metravi

SKU: ME.EL.OS.00047

Model: MSO6102E

Roll over image to zoom zoom_in
  1. Metravi 100MHz Mixed Signal Oscilloscope With Logic Analyser, MSO-6102E
  2. Metravi 100MHz Mixed Signal Oscilloscope With Logic Analyser, MSO-6102E
  3. Metravi 100MHz Mixed Signal Oscilloscope With Logic Analyser, MSO-6102E
  4. Metravi 100MHz Mixed Signal Oscilloscope With Logic Analyser, MSO-6102E
  5. Metravi 100MHz Mixed Signal Oscilloscope With Logic Analyser, MSO-6102E
Visit Metravi Store keyboard_double_arrow_right
  • Product Type: Oscilloscopes
  • Bandwidth: 100 MHz
  • No. of Channels: Dual Channel
  • Sampling Rate: 1GS/s half channel, 500MS/s each channel
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹92075.4 (Incl. of all taxes)

₹78030+ ₹14045.4 GST (18%)

MRP ₹114750

SAVE 32%

5 Business Days

1 Pcs

90302000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Metravi MSO-6102E, a modern, new age Mixed Signal Oscilloscope, is a multi-functional instrument for your testing needs. Featuring 100MHz bandwidth, 1Gs/a high sampling rate, dual channels and a high resolution, high contrast, colour TFT LCD with adjustable backlight, the device comes with multiple functions and high specifications, making it reliable and accurate.

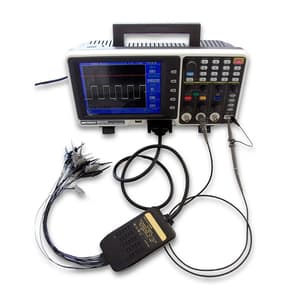

It has a built in Logic Analyzers with 16 input channels, 4M max storage for each channel, multiple trigger modes, convenient data measurement & data search, settings of all kinds of threshold levels.


Applications Include:

  • Electronic circuits debugging
  • Circuit testing
  • Designing & Manufacturing
  • Education & Training
  • Automobile maintenance & designing


Features:

  • Storage and call-out of waveforms
  • An automatic setting function provided capable of fast setting
  • Multiple-waveform calculation function
  • Built-in FFT function
  • Implementation of detecting the average and peak values of the waveform
  • Digital real-time oscilloscope
  • Edge, video, alternate, pulse, and slope triggering function
  • Different continuous displaying time

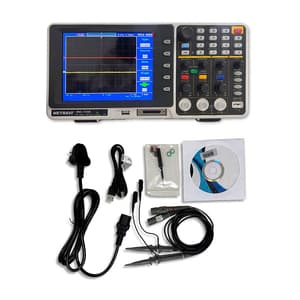

Package Content:

  • Passive probe: 2, 1.2 m

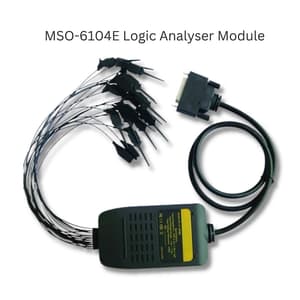

  • 1:1 (10:1), OL-16 LA measurement module
  • Software CD, USB Cable, Power Cable, User Manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.OS.00047
Product TypeOscilloscopes
Model NoMSO6102E
Bandwidth 100 MHz
No. of Channels Dual Channel
Sampling Rate 1GS/s half channel, 500MS/s each channel
Input Coupling System AC, DC, GND
Input Impedance 1MO±2%, in parallel with 15pF±5pF
Probe Attenuation Factor 1000X, 100X, 10X, 1X
Display 640 x 480 px, 8" Coloured LCD, full colour TFT
Power 100~240 VAC RMS, 50/60Hz, CAT II, Mains Voltage
Fuse 250V, 2A, T grade
Storage Environment -20° to 60°C, less than 90%RH
Operating Environment 0° to 40°C, less than 90%RH
Sample Rate 20 S/s ~ 1GS/s
Trigger Position Setting mid-trigger, Pre-trigger, re-trigger
Data System Binary system, Decimal system, Hex
Digital Filter 0/1/2 optional
Logic Analyser Input Signal Range 30V~30V
Logic Analyser Threshold level 6V~6V
Max. Storage 16K(when only sampling rate is 250MS/s, 500 MS/s, 1GS/s), 4M/Channel
Trigger Mode Bus trigger, Data width queue trigger, Distributed queue trigger, Edge trigger, Pattern trigger, Sequential queue data
