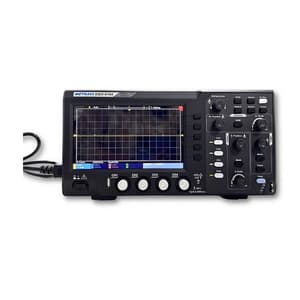

Metravi 100MHz Four Channel Digital Storage Oscilloscope (1GSa/Sec Sampling Rate), DSO-6104

Shop all Metravi

SKU: ME.EL.OS.00045

Model: DSO6104

Roll over image to zoom zoom_in
  1. Metravi 100MHz Four Channel Digital Storage Oscilloscope (1GSa/Sec Sampling Rate), DSO-6104
Visit Metravi Store keyboard_double_arrow_right
  • Product Type: Oscilloscopes
  • Bandwidth: 100 MHz
  • No. of Channels: Four Channel
  • Sampling Rate: 1GS/s
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹43005.1 (Incl. of all taxes)

₹36445+ ₹6560.1 GST (18%)

MRP ₹53595

SAVE 32%

5 Business Days

1 Pcs

90302000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Metravi DSO-6104 Digital Storage Oscilloscope comes with 100 MHz bandwidth and four channels. With a high sampling rate of 1G/s, it is a high-accuracy, reliable instrument for your applications.

The new Metravi 6000 series Digital Storage Oscilloscopes feature ultra-thin bodies, 7 inch high-resolution colour LCDs, USB interface and they also support SCPI and LabVIEW.


Applications Include:

  • Electronic circuits debugging
  • Circuit testing
  • Designing & Manufacturing
  • Education & Training
  • Automobile maintenance & designing

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.OS.00045
Product TypeOscilloscopes
Model NoDSO6104
Bandwidth 100 MHz
No. of Channels Four Channel
Sampling Rate 1GS/s
Rise Time <3.5ns
Display LCD, 7 inch, 800 x 480 pixels, Colour
DC Gain Accuracy ±3%
Record Length 20K
Probe Attenuation Factor 1000X, 100X, 10X, 1X
Interpolation sin (x) / x
Input Coupling System AC, DC, GND
Vertical Resolution (A/D) 8 bits
Trigger Type Edge, Video
Trigger Mode Auto, Single, Normal
Trigger Level ±5 divisions
Cursor Measurement Voltage and Time
Waveform Math -, *, /, +, FFT, invert
Waveform Storage 16
Interface USB device, USB host
Power Supply 100V – 240V AC, 50/60Hz, CAT II
Power Consumption <15W
Fuse 250V, 2A, T class
Horizontal Scale (s/div) 2ns/div – 1000s/div, step by 1 – 2 – 5
