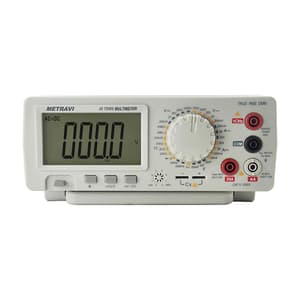

This instrument is a high-performance, 4½ digits bench multimeter for measuring DC and AC Voltage, DC and AC Current, Resistance, Capacitance, eHz, hFE, Diodes and Continuity. The max. voltage measuring can up to 1000V DC or AC peak value, resolution can be 10µV and current measuring can up to 20A, it also has the function of polarity auto-change, back-lit display and directly reading.
For AC measuring it is performed by high accuracy RMS, has the feature of width measuring, and to get accurate RMS for AC flow of any wave shape.

• Power supply: 220V/110V AC
• Manual range
• 4 1/2-digit large LCD display with back light(displaying range:75 x 40mm), max. reading: 19999
• Voltage measurement up to 1000VDC and 750V AC
• DC, AC current up to 20A
• ACV frequency response: 50kHz
• Frequency, Resistance, Capacitance measurement, Triode, Diode check and Continuity Test
• Overload protection:250V rms
• Operation environment: 0°C--40°C,<75% R.H

Features:

Accuracy ±(reading% + the lowest effective digit) preheating time: 30 min.
Temperature for accuracy guarantee:(235)°C, R.H<75%.

DC Voltage

Range	Accuracy	Resolution
200mV	+ (0.05% RDG + 3)	10uV
2V	+ (0.05% RDG + 3)	100uV
20V	+ (0.05% RDG + 3)	1mV
200V	+ (0.05% RDG + 3)	10mV
1000V	+ (0.1% RDG +5)	100mV

Input resistance: 10ΜΩ for all ranges
Overload protection: 200mV range: 250VDC or AC peak value
Other range: 1000VDC or AC peak value

AC Voltage

Range	Input Frequency	Accuracy	Resolution
200mV	50Hz-50kHz	+ (0.8% RDG + 80)	10uV
2V	50Hz-20kHz	+ (0.8% RDG + 80)	100uV
20V	50Hz-20kHz	+ (0.8% RDG + 80)	1mV
200V	50Hz - 5kHz	+ (0.8% RDG + 80)	10mV
750V	50Hz - 400kHz	+ (1.0% RDG +50)	100mV

The input value for accuracy gurantee should be larger than 10% of range.
Input resistance: 2MS2 for all range.
Overload protection: 200mV range: DC or AC peak value
Other range: 1000V DC or AC peak value

DC Current

Range	Accuracy	Resolution
20mA	+ (0.35% RDG +10)	1μA
200mA	+ (0.35% RDG +10)	10μ?
2A	+ (0.8% RDG +10)	100μ?
20A	+ (0.8% RDG +10)	1μA

Max. input voltage drop: 200mV
Max. input current: 20A (wighin 15s)
Overload protection: 2A/250V fused, 20A/250V fused

AC Current

Range	Input Frequency	Accuracy	Resolution
200mA	50Hz-5kHz	+ (0.8% RDG+80)	10μA
2A	50Hz-400Hz	+ (1.0% RDG +50)	100μ?
20A	50Hz-400Hz	+ (1.0% RDG +50)	1mA

Max. input voltage drop: 200mV
Max. input current: 20A (within 15s)
Overload protection: 2A/250V fused, 20A/250V fused

Resistance

Range	Accuracy	Resolution
200 Ω	+ (0.1% RDG +20)	0.01 Ω
2k Ω	+ (0.1% RDG + 5)	0.1 Ω
20k Ω	+ (0.1% RDG + 5)	1 Ω
200k Ω	+ (0.1% RDG + 5)	10 Ω
2M Ω	+ (0.1% RDG + 5)	100 Ω
20M Ω	+ (0.4% RDG + 5)	1k Ω

Open voltage: less than 3V
Overload protection: 250V DC or AC peak value

Capacitance

Range	Accuracy	Resolution
20nF	+(3.5% +20)	1pF
2uF	+(3.5% +20)	100pF
200uF	+(5%+30)	10nF

Measuring frequency: approx. 400Hz
Overload protectrion: 36V DC or AC peak value

Frequency

Range	Accuracy	Resolution
20kHz	+(1.0% +20)	0.1Hz
200kHz	+(1.0% +20)	1Hz

Input sensitivity: 500mV rms
Overload protection: 250V DC or AC peak value (within 15s)

hFE Measuring

Range	Displaying	Test
hFE NPN or PNP	0-1000.0	Basic current is approx. 10mA, Vce is approx. 3V

Diode & Continuity Test

Range	Accuracy	Resolution
	The measuring value is the approx. value for forward voltage drop. when the resistance under tested is less then 702 +20 £2, buzzer sounds and display the approx. value. The open voltage is approx. 3V	Forward DCA is approx. 1mA, backward DCV is less than 3V

Overload protection: 250V DC and AC peak value.
