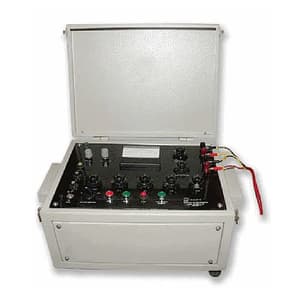

"Metravi" transformer turns ratio meter is perfectively suitable to measure actual turns ratio of a transformer. The instrument also measures percentage ratio & Phase errors directly. The polarity of the transformer under test is also indicated on null detector panel meter, provided on front panel. Transformer Turns Ratio Set to measure ratio in the range of 0.800 to 2021 & for Phase Deviation Measurement.

Wide measuring range, better resolution, measures percentage ratio & phase error directly, advanced design using integrated circuits, efficient shielding technique, compact in size, phase sensitive null detector,  check polarity.

Features:

• Perfectively suitable to measure actual turns ratio of a transformer
• Measures percentage ratio & Phase errors directly
• The polarity of the transformer under test is also indicated
• Measurements are carried out in 10 ranges arranged in a 1, 2,5,10 sequence.
• The measuring span has a range of ratios from 0.800 to 2021
• The ratio resolution is 0.01%.
• Phase deviation measurements are carried out in two ranges.

Specifications:

Measuring Range	Transformer ratio measurements are carried out in 10 ranges Arranged in a 1, 2, 5,10 sequence. For TTRS-100 the measuring span has a range of ratios from 0.800 to 2021. The ratio resolution is 0.01%. In this model phase deviation measurements are carried out in two ranges. Namely ±5.5 cent-radians (1CR=34minutes).
Excitation	The measured value of transformer ratios varies slightly with the magnitude of excitation voltage applied to the transformer under test. This meter provides 1.2V, 12V & 120 volts excitation voltage. This voltage is isolated from the mains supply for operator's safety. It is preferable to take readings on 120volts whenever possible.
Direct ratio errormeasurement range	± 0.1% of the range with a resolution of 0.02%
Direct ratio error measurement Accuracy	± 0.25% of the reading
Null Detector	The solid state, synchronous and phase sensitive null detector with Adjustable gain control provides high sensitivity for both ratio and phase balance.
Construction	The ratio meter is housed in a sturdy metal case and is built with the operator's safety and convenience in view. All functionally similar controls are grouped together for ease of operation. Connections between the transformer under test and the instrument are made at clearly identified binding posts. All ratio dials and ratio multiplier selector switch and dial are similarly grouped. Null detector sensitivity control is adjacent to the null detector. The zero center null indicators are coordinated with the ratio and phase dials such that the rotation of dials in a direction opposite to the deflection of the null indicator brings closer to balance.
