Metravi 0.1mOhm - 40 Ohm / AC/DC Current Tester Milli Ohms Meter With Kelvin (4-Wire System), 52C
Roll over image to zoom zoom_in
- Weight: 700 Grams
- Product Type: Ohms Meter
- Display: LCD
- Output Current: 200mA
- Sampling Rate: 2 times per second
- Power Source: Battery Operated
- No of Batteries: 6
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹11156.9 (Incl. of all taxes)
₹9455+ ₹1701.9 GST (18%)
MRP ₹13905
SAVE 32%
5 Business Days
1 Set
90303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

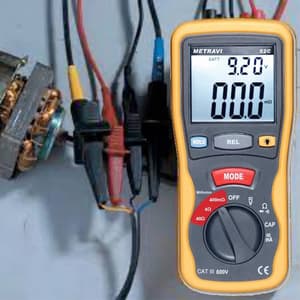

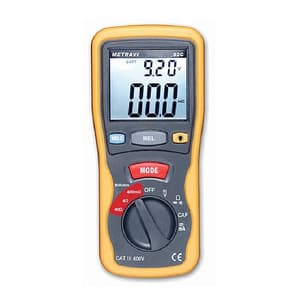

The Hand Held Metravi 52C Milli Ohms Meter, 0.1mOhms to 40 Ohms, 4 wire Kelvin type connection, also measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance and continuity.
Features & Benefits:
- Low resistance range: 0~40Ω
- Display: 3-3/4 Digits Large LCD with bar graph display
- Maximum output current : 200mA (400mΩ)
- Relative measurement
- Auto Power Off
- Low Battery and Over Range Indication
- 4Terminal Measurement with kelvin clip probes
- Overload Protection on all ranges
- Max / Min Recording
- Confirms to CAT-III 600V
- Low Resistance: 0 – 400m / 4 / 40 Ω
- Accuracy: ± 1%
- DC Voltage: 0 – 400m / 4 / 40 / 400 / 1000V
- Accuracy: ± 1%
- Resolution: 0.1mV - 1V
- AC Voltage: 0 – 400m / 4 / 40 / 400 / 750V
- Accuracy: ± 1%
- Resolution: 0.1mV - 1V
- DC Current: 0 – 400u / 4000u / 40m / 400mA
- Accuracy: ± 1.5%
- Resolution: 0.1μA - 0.1mA
- AC Current: 0 – 400u / 4000u / 40m / 400mA
- Accuracy: ± 1.5%
- Resolution: 0.1μA - 0.1mA
- Capacitance: 0 – 4n / 40n / 400n / 4u / 40u / 400u / 4m / 40mF
- Accuracy: ± 3.0%
- Resolution: 1pF - 10μF
- Resistance: 0 – 400 / 4k / 40k / 400k / 4M / 40M.Ohms
- Accuracy: ± 1.0%
- Resolution: 0.1Ω - 10kΩ

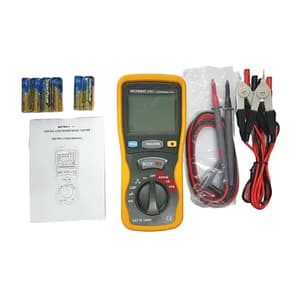

What's Included In This Package:
- 1x Metravi 52C Milli Ohms Meter
- 1x Instruction Manual

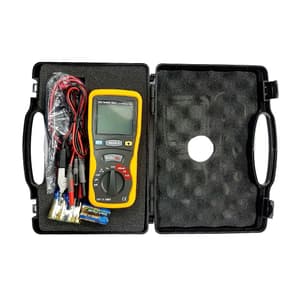

- 1x Carrying case
- 2x Test leads
- 6x Batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.OH.00009 |
|---|---|
| Product Type | Ohms Meter |
| Model No | 52C |
| Colour | Yellow-Black |
| Display | LCD |
| Method of Measurement | 4 Terminal Measurement with kelvin clip probes |
| Output Current | 200mA |
| Sampling Rate | 2 times per second |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AA |
| No of Batteries | 6 |
| Operating Temperature | 0°C - 40°C (32°F to 104°F) and Humidity below 80% RH |
| Storage Temperature | -10°C - 60°C (14°F to 140°F) and Humidity below 70% RH |
| Length x Width x Height (mm) | 200 x 92 x 50 |
| Certifications | CAT-III 600V |
