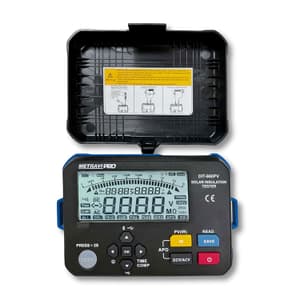

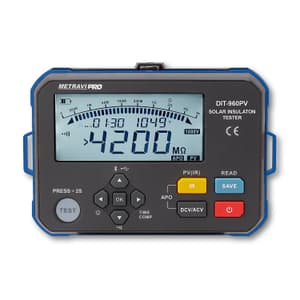

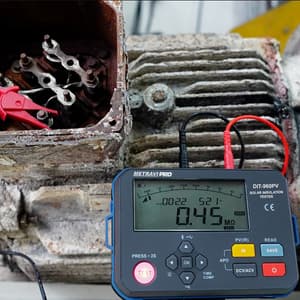

The Metravi PRO DIT-960PV Digital Solar Insulation Tester has the function of measuring Photovoltaic (PV) live insulation resistance, ordinary insulation resistance function (non-live), AC and DC voltage automatic recognition measurement and so on. The PRO DIT-960PV can be used to measure Photovoltaic energised (maximum: 1000V DC) Insulation Resistance and conventional Insulation Resistance (de-energised) and also automatically identify AC/DC Voltage.

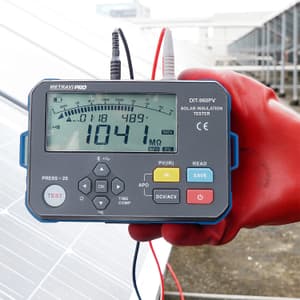

It has multiple functions including: Photovoltaic Insulation Resistance measurement without solar panel in power outage/short circuit condition or at night, Voltage Stepping, Bluetooth transmission, Automatic Discharge, High Voltage warning, remote-controlled test lead operation, and more. The Metravi PRO DIT-960PV Digital Solar Insulation Tester is commonly applied to test insulation resistance for various equipment such as Photovoltaic/ solar panels, battery energy storage system, new energy vehicles, etc.

Features:

• Photovoltaic insulation resistance measurement (PV)
• Conventional insulation resistance measurement
• AC/DC voltage testing (VDC/VAC)
• Maximum insulation resistance range: 4000MΩ
• Rated voltage for conventional output (Conventional insulation resistance: 4 positions): 125V, 250V, 500V, 1000V
• Rated voltage for PV output (Photovoltaic insulation resistance: 2 positions): 500V, 1000V
• Short-circuit current: <1.5mA
• Step of each range: 10% of rated voltage
• Comparative measurement of insulation resistance (COMP)
• Time-set measurement of insulation resistance (TIME)
• External voltage detection function to enable monitoring energised voltage of measured object automatically
• Designed with timer to record testing time automatically
• Automatic discharge and high voltage warning
• Analogue bar graph to display the range of insulation resistance testing result
• Manual/Automatic power-off
• Data Logging for upto 1000 sets of data
• Data storage/deletion function
• Data upload function
• Bluetooth Interface and Smartphone App
• Manual/Automatic backlight
• Mute function
• LCD high-definition segmented display
• Modes of Measurement: Continuous, Comparative and Time-set
• High Voltage warning
• Automatic identification of AC/DC voltage
• Automatic Discharge

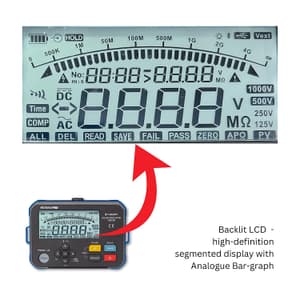

• Display: Backlit LCD high-definition segmented display with Analogue Bar-graph
