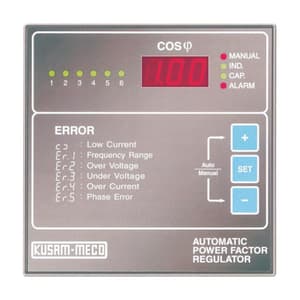

Kusam-Meco 0 - 60°C Digital Power Factor Regulator (6 Step / Sequence Based), KM-PFR-9-06
Roll over image to zoom zoom_in
- Weight: 1 Kg
- Product Type: Power Meter
- No of Steps: 6 Steps
- Voltage Burden: Less Than Equal To 6 VA
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹13711.6 (Incl. of all taxes)
₹11620+ ₹2091.6 GST (18%)
MRP ₹14525
SAVE 20%
3 Business Days
1 Pcs
85372000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
The pioneers & leaders in high-quality power factor controllers & maximum demand controllers. These controllers have microprocessors for automatic control of power factor. It has a digital indication of the power factor.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Display: Power Factor
- Simple Operation
- Automatic self-adjustment for C/K value.
- Different types of Operation sequence (1:1:1:1….) (1:2:2:2….) (1:2:4:4….)... (1:4: 8...) ( 1: 1: 2: 2 )...( 1: 1 : 2: 2..)...( 1: 1 : 4: 8..)...( 2 : 4:...( 1 - 1- switching in sequential Sequence)
- The set data is preserved for at least two months in the event of Power failure.
- Power Factor Display: Digital Display, RED LED, 14.2 mm height, 0.01PF Resolution
- C/K setting Range: Automatic self-adjustment for C / K value
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.PO.00082 |
|---|---|
| Product Type | Power Meter |
| Model No | KMPFR906 |
| No of Steps | 6 Steps |
| Voltage Burden | Less Than Equal To 6 VA |
| Operating Temperature | 0 - 60°C |
| Storage Temperature | -10 ~ 70°C |
| Operation Voltage Range | AC 220V ± 15% & AC 415V ± 15% |
| Input Current Range | AC 0.05 ~ 5A, max 6A |
| Current Burden | Less Than Equal To 0.5 VA |
| Withstanding Impulse Voltage | According to IEC 1000 - 4 - 5 |
| Electrical Transient Burst | According to IEC 1000 - 4 - 4 |
| Connection | Plug in Terminal block |
| Phase | Single Phase or Three Phase |
| Power Factor Setting Range | CAP 0.90 - IND 0.90 (Factory Set 0.98 P.F.) |
| Operation Time Display | 10 - 240 Sec. Delay Time. (Factory Set 30 Sec) |
| Output Contacts Coils | AC 220V 5A (Max. AC 380V, 5A, Typical) |
| Dielectric Strength | AC 220V, 50Hz, 1 Minute, Input / Output / Ground |
| Dimension (LxWxD) | 144 x 144 x 65 mm |
