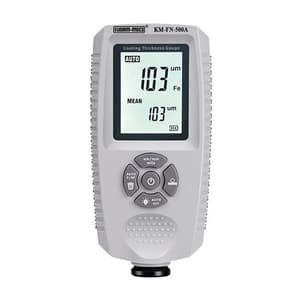

Kusam-Meco 0 - 1500µm Digital Coating Thickness Gauge, KM-FN-500A
Roll over image to zoom zoom_in
- Weight: 84 Grams
- Product Type: Coating Thickness Meter
- Measuring Range: 0 to 1500 mm
- Accuracy: Type A: ±(3%+1µm) / Type B: ±(2%+1µm)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹10572.8 (Incl. of all taxes)
₹8960+ ₹1612.8 GST (18%)
MRP ₹11200
SAVE 20%
3 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, & insulating coatings, e.g. pain & anodizing coatings on non-ferrous metals. Coating thickness testing for car paint, electroplating, surface technology, pipeline anticorrosion coating, mechanical equipment surface anticorrosion, chemical equipment and quality control.
Package Content:
- Thickness Guage
- User Manual
- Battery
- Carrying Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.NO.CO.00011 |
|---|---|
| Product Type | Coating Thickness Meter |
| Model No | KMFN500A |
| Measuring Range | 0 to 1500 mm |
| Accuracy | Type A: ±(3%+1µm) / Type B: ±(2%+1µm) |
| Resolution | 0µm~99.9µm (0.1µm) 100µm~999µm (1µm) >1000µm (0.01mm) |
| Backlight | Yes |
| Minimum Curvature Radius Convex | 5mm |
| Minimum Curvature Radius Concave | 25mm |
| Minimum Measuring Area | Diameter 20mm |
| Minimum Thickness of Substrate | 0.2mm (Probe F) / 0.05mm (Probe N) |
| Power Supply | 2 x 1.5V AAA battery |
| Operating Temperature | 0~50°C (32 ~ 122°F) |
| Humidity | 20% ~ 90% RH |
| Storage Temperature | -10 ~ 60°C (14 ~ 140°F) |
| Units | µm, mm, mils |
| Standard Compliance | CE ROHS FCC |
| Maximum Measuring Rate | Two Readings Per Second |
| Calibration | Zero Point Calibration |
| Statistics | No. of readings, Mean, Minimum, Maximum |
| Measuring Principle | Magnetic induction (Probe F) / Eddy Currents (Probe N) |
| Dimension | 110 x 53 x 24 mm |
