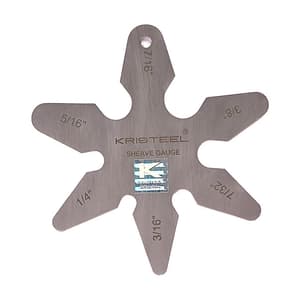

This Gauge made in stainless steel, extremely useful tool for measuring wire rope & sheave wear, sheave maintenance by measuring sheave contour wear at the root, measuring the amount of wear at the groove wall & measuring the diameter of the wire rope. Range of Star Gauge:- 1/4", 3/16", 7/32", 3/8, 7/16, 5/16".

The correct size sheave is required to minimize wear and tear on rope or wire. When grooved become overly worn or are too large, they may allow excessive movement, which stresses the rope and reduces its longevity. Likewise, too small of a groove compresses the rope and reduces its useful life because the rope will roll into the sheave groove introducing torque and twist which may cause high stranding and bird-cages.

• A. Sheave Groove Root Wear:- Wire rope will wear the bottom of the sheave groove to a radius smaller than the radius of the sheave. To determine the amount of wear, place the proper size gauge in the sheave and shine a light behind the gauge. The light should not be detected between the gauge and the root of the groove. If wear is evident, the sheave should be re-machined or replaced.
• B. Measuring Wire rope and Sheave Wear:- A properly machined sheave groove allows a wire rope to pass through unhindered by friction or obstructions. Sheaves should be checked periodically for wear in the grooves which may cause abrasion, pinching, and bird caging of the rope. If the groove shows signs of rope imprints the sheave must be replaced or re-machined and re-hardened.
