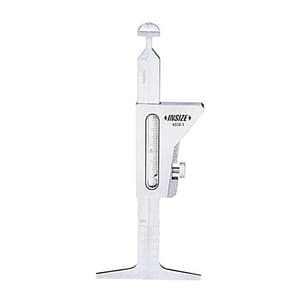

Pipe welding gauge made of stainless steel, Internal misalignment measurement range fit-up gap measurement.

Insize has quality products made to international standards with a full guarantee. Innovation by continually striving to improve and develop new products. Service and support to ensure you have trouble-free use of our products.


• Made of stainless steel.



Measurement	Range	Graduation	Accuracy

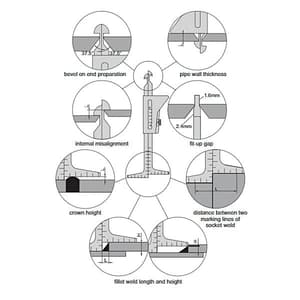

The bevel on end preparation pipe wall thickness internal misalignment fit-up gap crown height distance two marking line of socket weld fillet weld length fillet weld height.	37.5° 0-45mm (0~1-3/4") 0-35mm (0~1-3/8") 1.6mm, 2.4mm 0-35mm (0~1-3/8") 0-60mm (0~2-3/8") 0-30mm (0~1-1/4") 0-35mm (0~1-3/8")	- 1mm (1/16") 1mm (1/32")         - 1mm (1/32") 1mm (1/16") 1mm (1/16") 1mm (1/32")	±1° ±0.5mm ±0.5mm ±0.1mm ±0.5mm ±0.5mm ±0.5mm ±0.5mm
