• True Rms
• Insulation Resistance
• Duty Cycle
• Data Hold
• Dual Integral A/D Conversion Integrated Circuit

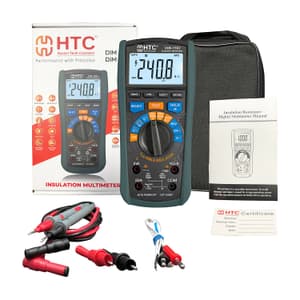

Package Content:

• Test Lead
• Shockproof Cover
• Carry Case
• TP01 Temperature Probe
• Manual &  Battery

DC Voltage:

Range	Resolution	Accuracy
600mV	0.1 mV	±(0.5%+5 digits)
6V	1mV
60V	10mV
600V	100mV
1000V	1V	±(1.0%+5 digits)

AC Voltage (True RMS):

Range	Resolution	Accuracy
6V	1mV	±(0.8%+10 digits)
60V	10mV	±(1.0%+10 digits)
600V	100mV
750V	1V

Resistance:

Range	Resolution	Accuracy
600Ω	0.1Ω	±(0.8%+5 digits)
6kΩ	1Ω	±(0.8%+2 digits)
60kΩ	10Ω
600kΩ	100Ω
6MΩ	1kΩ	±(1.2%+5 digits)
60MΩ	10kΩ

DC Current:

Range	Resolution	Accuracy
6mA	1µA	±(1.0%+5 digits)
60mA	10µA
600mA	100µA
6A	1mA
20A	10mA	±(2.0%+5 digits)

AC Current:

Range	Resolution	Accuracy
6mA	1µA	±(1.5%+5 digits)
60mA	10µA
600mA	100µA
6A	1mA
20A	10mA	±(2.0%+5 digits)

Temperature:

Range	Resolution	Accuracy
(-40~1000)ºC	<400ºC± (1% +5 digits)	1ºC
	>400ºC± (1% +5 digits)
(0~1832)ºF	<750ºF± (1% +5 digits)	1ºF
	>750ºF± (1% +5 digits)

Frequency:

Range	Resolution	Accuracy
50kHz	Switch to display ACV	±(0.5%+4 digits)

Insulation Resistance Testing:

Range	Test Conditions	Accuracy
300MΩ	250V	±(4%+2 digits)
500MΩ	500V
2000MΩ	1000MΩ

Capacitance:

Range	Resolution	Accuracy
60nF	10pF	±(2.5%+6 digits)
600nF	100pF	±(2.5%+5 digits)
6µF	1nF
60µF	10nF
600µF	100nF	±(5.0%+8 digits)
6mF	1µF
60mF	10µF
