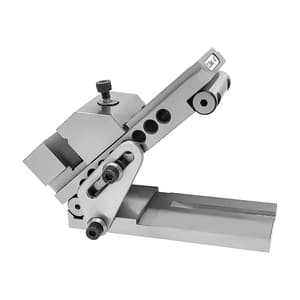

Groz 2-3/4 Inch Screwless Type Super Precision Sine Vice With 6 Inch Centre To Centre Distance, SNV/6
Roll over image to zoom zoom_in
- Weight: 5.25 Kg
- Product Type: Sine Vices
- Size (Inches): 2-3/4 inch
- Jaw Depth: 1-9/16 Inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹20019.88 (Incl. of all taxes)
₹16966+ ₹3053.88 GST (18%)
MRP ₹24237
SAVE 30%
Out of Stock
3 Business Days
1 Pcs
8205
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Manufactured from selected tool steel, these Solid Sine Vices are fully hardened (55-60 HRC) and tempered, mounted onto a precision hinged bottom plate. All the surfaces of the vice are precisely ground for extreme accuracy
- These are very useful for manufacturing processes that require the highest standards of clamping accuracy at desired angles
- A minute angle step of 0.2"/5 mm allows very small angles to be set with ease using standard gauge blocks
| Accuracies | Guaranteed Micron | Actual Average Micron |
| Flatness of bearing surface | 10 | 5 |
| Parallelism of slide face & top face to bottom face | 10 | 5 |
| Squareness of sides & slide faces | 12 | 8 |
| Parallelism of sides & slide ways | 8 | 5 |
| Squareness of fixed jaw back to bottom surface & sides | 12 | 8 |
| Parallelism of fixed jaw & length faces | 8 | 5 |
| Parallelism of jaw Faces | 8 | 5 |
| Sliding jaw square to bottom face when vice is clamped | 12 | 8 |
| Sliding jaw face parallel when vice is clamped | 8 | 5 |
| Center to center distance | 10 | 5 |
Sine Vice being used to drill an angled hole on a machine wheel |
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| SKU | HA.VI.SI.00001 |
|---|---|
| Product Type | Sine Vices |
| Model No | SNV/6 |
| Size (Inches) | 2-3/4 inch |
| Jaw Depth | 1-9/16 Inch |
| Jaw Opening | 3-3/4 Inch |
| Type | Screwless |
| Minute angle step | 5 mm / 0.2 Inch |
| Center to Center distance | 6 Inch |
| Body Dimensions | 7.3/32" × 3.1/4 × 3.11/32 |
