Working in cramped electrical boxes and trying to find safe metallic contact points is often challenging. The Fluke T6-600 Electrical Tester with FieldSense™ technology, lets you quickly and safely take measurements by sliding the open fork over a conductor, without the need for test leads. The T6-600 works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening.

Features:

• Measure AC voltage, current, frequency without touching a live wire
• Troubleshoot with all power supply measurements at-a-glance
• See AC voltage and current values without test leads.

How FieldSense™ Technology Works:

FieldSense™ technology is a breakthrough in how voltage is measured. Other open fork testers detect a magnetic field to show AC current. FieldSense™ technology detects an electrical field, which interacts with a reference signal created by the T6 tester, which shows the measurement value on the tester’s display.

Tips On Using FieldSense Technology:

• Do not hold or touch the wire you are testing during a measurement.
• Use the black probe to make the ground connection if you are wearing gloves, insulated footwear, or standing on an insulated ladder.

Measurement Versatility:

The electrical tester offers a variety of measurement options giving you an all-in-one troubleshooting tool. Measure true RMS voltage and current from 0 to 200 A AC or 1 to 600 V AC or DC.

You can also gather resistance measurements from 1 Ω to 2000 Ω. With the easy-to-read backlit display, you can keep see your work in dark environments and keep your most recent measurement on the screen with the HOLD button for easy viewing. The T6-600 also Accepts an optional Fluke TPAK Magnetic Meter Hanger for convenient operation.

What's Included In This Package:

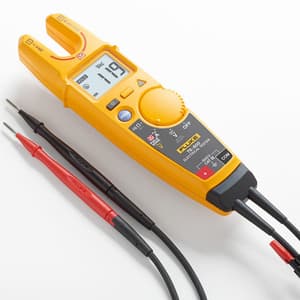

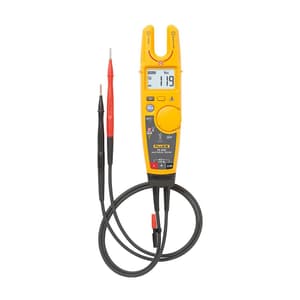

• Fluke T6-600 Electrical Tester
• Attached test leads with removable 4 mm probe caps
• Quick Reference Guide

Measurement Specifications:

Function	Requires test leads	Range	Resolution	Accuracy[1]
FieldSense ac voltage true-rms	No	600 V	1 V	±(3% + 3 counts) 45 Hz - 66 Hz[2] [3]
FieldSense ac current true-rms	No	200.0 A	0.1 A	±(3% + 3 counts) 45 Hz - 66 Hz
Volts ac true-rms	Yes	600 V	1 V	±(1.5% + 2 counts) 45 Hz - 66 Hz
Volts dc	Yes	600 V	1 V	±(1% + 2 counts)
Resistance	Yes	2000 Ohms	1 Ohms	±(1% + 2 counts)
Safety		600 V CAT III
Accuracy[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac-coupled, RMS responding. Accuracy[2]: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground. Accuracy[3]: FieldSense is specified from 16 V to 100 % of range.
General Specifications
Temperature	Operating	-10 °C to +50 °C (14 °F to 122 °F)
	Storage	-30 °C to +60 °C (-22 °F to +140 °F)
Altitude	Operating	2,000 m (6,562 feet)
	Storage	10,000 m (32,808 feet)
Relative Humidity	0% to 90%, 5 °C to 30 °C (41 °F to 86 °F)
	0% to 75%, 30°C to 40 °C (86 °F to 104 °F)
	0% to 45%, 40°C to 50 °C (104 °F to 122 °F)
Temperature coefficient	0.1 x (specified accuracy) / °C for <18°C or >28 °C
	(< 64.4 °F or > 82.4 °F)
