Measure current up to 100 A without breaking the circuit with OpenJaw™ design. The T5-1000 Electrical Tester is a versatile troubleshooting tool to carry to every job site. Use it to check voltage, continuity, and current–all with one compact tool.

Features:

• OpenJaw™ design: measure current without breaking the circuit
• The tester automatically selects AC or DC voltage, up to 1000 V

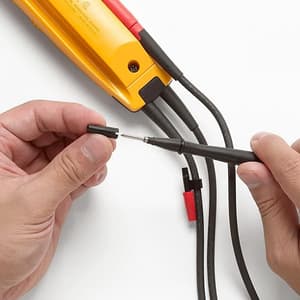

• Work in tight spaces with detachable Slim Reach probe tips.

Key Safety Features:

An integrated protection circuit allows the tester to stay connected to a voltage source longer than a solenoid tester. The T5-1000 Electrical Tester also boasts:

A CAT III 1000V, CAT IV 600 V rating. Withstands a 10 ft. (3 m) drop. The T5-1000 has an Auto-off mode to conserve battery life. The unit fits into an optional holster that attaches to a belt and neatly stows test leads.

How To Use The T5-1000:

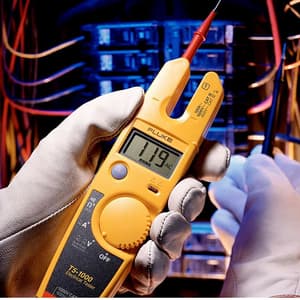

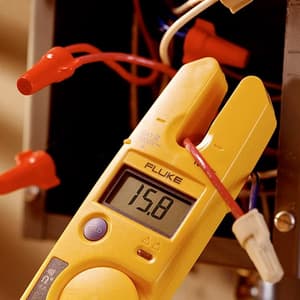

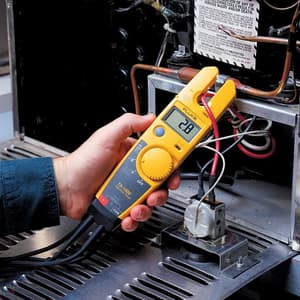

Just select volts, ohms, or current and the tester does the rest. The electrical tester auto-selects between AC and DC voltage up to 1000 V. Plus, the OpenJaw™ design allows for fast and easy current measurements without needing to make metallic contact, just slide a wire into the open fork. The continuity beeper offers quick go/no-go tests, resistance measurements to 1000 Ω.

The electrical tester comes with detachable Slim Reach probe tips so you can easily work in tight spaces. Or hand-free work when you use the test lead holder to make the meter an “extended handle” for the probe.

Fluke T5-1000 vs T6-1000:

The T5-1000 uses the OpenJaw™ design to measure current without metallic contact, just slide the wire in the open fork and the T5 will do the rest. It also measures voltage and continuity with the test leads. The T6-1000 is designed to use FieldSense™ technology to display both current and voltage simultaneously.

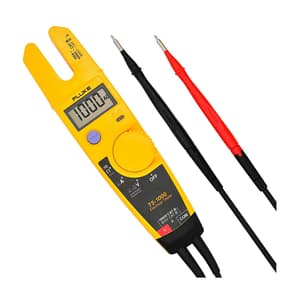

What's Included In This Package:

• T5-1000 Electrical tester
• 4 mm detachable probes
• Quick Reference Guide

Specifications:

Operating temperature	-10°C to 50°C
Storage temperature	-30°C to 60°C
Humidity (without condensation)
	0% to 95% (5°C to 30°C);
	0% to 75% (30°C to 40°C);
	0% to 45% (40°C to 50°C)
Dust/water resistance	Yes
Operating altitude	2000 meters max
Temperature coefficient	0.1 x (specified accuracy)/°C (< 18°C or> 28°C)
Safety Specifications
Measurement Category	IEC 61010-2-032, IEC61010-2-033: CAT IV 600 V / CAT III 1000 V, 100 A ac
Agency approvals	CSA, TUV
Maximum voltage	1000 V between any terminal and earth ground
Mechanical and General Specifications
Size	30.5 x 51 x 203 mm
Warranty	Two-years
Battery life	200 hour zinc chloride, 400 hour alkaline
Battery type	2 x AA
Low battery indicator	Yes
Current sensor opening	12.9 mm
