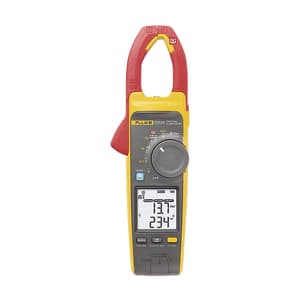

Fluke 378 Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex

Complete 3-Phase Measurements In Quick, Easy Steps:

• Complete 3-phase voltage and current tests in 3 easy steps
• Full set of phase-to-ground and phase-to-phase values calculated and shown on the meter
• Values are also displayed on your smart phone and saved to the cloud via Fluke Connect software
• Phase rotation auto-calculated and shown on the Fluke Connect software
• No more hand-written notes or complicated math.

Voltage And Current Measurements With FieldSense™ Technology:

The Fluke 378 true-rms clamp meter uses FieldSense™ technology to make testing faster and safer, all without contacting a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display.

Power Quality Indicator Shows Whether A Problem Is In The Equipment Or The Power Line:

The 378 clamp meter includes a unique PQ function that senses power quality issues automatically. When making FieldSense measurements, the 378 will detect and display power quality issues, relating to current, voltage, power factor or any combination of the three. Now you can quickly determine if an upstream supply problem exists, or if there is a downstream equipment problem.

Measure Extremely High Current With iFlex® Probe:

The included iFlex flexible current probe lets you measure ac current as high as 2500 A. Crowded wiring cabinets and large conductors are easily measured with the iFlex probe.

Easy To See, Easy To Use With Included Tools:

Your job will get easier when you use the 378 clamp meter. The display turns green when a stable FieldSense measurement is detected. Visual Continuity also provides a bright green screen for easy detection of continuity in noisy work areas.

Record, Analyze, Share Results With Fluke Connect® Software:

With Fluke Connect software you can remotely log, trend and monitor measurements to pinpoint intermittent faults. Fluke Connect also allows you to gather data as the basis for a preventive maintenance program.

Features:

• Measure voltage and current with your clamp jaw
• Faster, safer testing - all without touching a live wire - using FieldSense™ technology
• Power quality indicator shows whether equipment or power line is faulty
• Complete 3-phase voltage and current tests in 3 quick steps

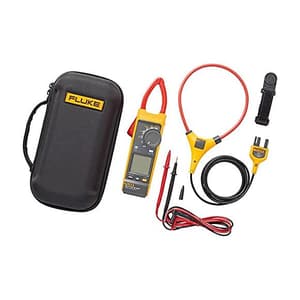

What's Included In This Package:

• Clamp Meter
• Flexible Probe
• ToolPak™ Magnetic Meter Hanger
• Test Leads
• TwistGuard™ Test Probes
• Black Grounding Clip
• Premium Carrying Case
• Quick Reference Guide

Specifications:

Electrical
AC Current: Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % ±5 digits (45 Hz to 66 Hz)
Crest Factor (50/60 Hz)	3 @ 500 A 2.5 @ 600 A 1.42 @ 1000 A Add 2 % for C.F. >2
AC Current: Flexible Current Probe
Range	2500 A
Resolution	1 A (≤2500 A) 0.1 A (≤999.9 A)
Accuracy	3 % ±5 digits (5 Hz to 500 Hz)
Crest Factor (50/60Hz)	3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2 % for C.F. >2
Position Sensitivity
Distance from Optimum	i2500-10 Flex	i2500-18 Flex	Error
A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	± 0.5 %
B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	± 1.0 %
C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	± 2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % ±5 digits1
[1]When using the ZERO function to compensate for offsets
AC Voltage: Field Sense
Range	1000 V
Resolution	1 V (≤1000V)
Accuracy	≤4/0 AWG	3 % ±5 digits (45 Hz to 66 Hz)
	≥4/0 AWG	5 % ±5 digits (45 Hz to 66 Hz)
Position wire as close as possible to jaw opening (see illustration).
AC Voltage: Test Leads
Range	600.0 V 1000 V
Resolution	0.1 V (≤600.0 V) 1 V (≤1000 V)
Accuracy	1 % ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range	600.0 V 1000 V
Resolution	0.1 V (≤600.0 V) 1 V (≤1000 V)
Accuracy	1 % ±5 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1 % ±5 digits
Amps Frequency: Jaw
Range	45 Hz to 66 Hz
Resolution	0.1 Hz
Accuracy	0.5 % ±5 digits
Trigger Level	5 Hz to 10 Hz, ≥10 A 10 Hz to 100 Hz, ≥ 5 A 100 Hz to 500 Hz, ≥ 10 A
Amps Frequency: Flexible Current Probe
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % ±5 digits
Trigger Level	5 Hz to 20 Hz, ≥25 A 20 Hz to 100 Hz, ≥20 A 100 Hz to 500 Hz,≥25 A
Resistance
Range	60.00 k? 6000 ? 600.0 ?
Resolution	0.1 ? (≤600.0 ?) 1 ? (≤6000 ?) 10 ? (≤60.00 k?)
Accuracy	1 % ±5 digits
Capacitance
Range	1000 μF
Resolution	0.1 μF (≤100.0 μF) 1 μF (≤1000 μF)
Accuracy	1 % ±4 digits
Environmental
Operating Humidity (without condensation)	Non condensing (<10 °C) ≤90 % RH (10 °C to 30 °C) ≤75 % RH (30 °C to 40 °C) ≤45 % RH (40 °C to 50 °C)
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C >28 °C or <18 °C
Ingress Protection	IEC 60529: IP30 (jaw closed)
Operating Altitude	2000 m
Storage Altitude	12 000 m
Electromagnetic Compatibility (EMC)
	International	IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2, CISPR 11: Group 1, Class B
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
	Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
	Korea (KCC)	Class A equipment (Industrial Broadcast & Communications Equipment)
	Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Safety
General	IEC 61010-1: Pollution degree 2
Measurement	IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
Current Clamp for Leakage Current Measurements	IEC 61557-13: Class 2, ≤30 A/m
Wireless Radio
Radio Frequency Certification	FCC ID: T68-FBLE IC:6627A-FBLE
Frequency Range	2405 MHz to 2480 MHz
Output Power	<100 mW
Radio Frequency Data	Radio Frequency Data For Class A Devices SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Fluke declares that the radio equipment contained in this Product is in compliance with Directive 2014/53/EU.
