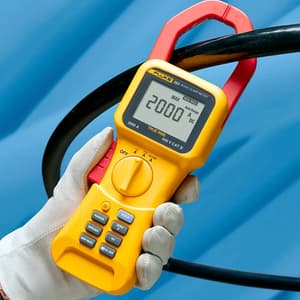

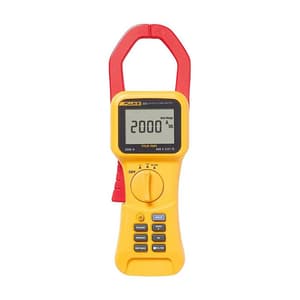

Confidently take reliable readings with the True RMS, Fluke 353 digital clamp meter; the tools of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications.

The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements. Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads.

Features:

• Reliably handle a wide range of high-current applications with 2000 A AC + DC true-rms, 1400 A ac, and 2000 A DC
• The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
• CAT IV 600 V, CAT III 1000 V rating for added user protection
• In-rush current measurement captures ‘power-on’ surge current with accuracy and repeatability
• Accurately measure frequency up to 1 kHz for optimum troubleshooting
• Quickly analyze readings using the MIN, MAX, and AVG functions
• A large backlit display allows for easy visibility in low-lit areas
• Use the display hold feature to capture readings even when the display cannot be viewed
• Use the low-pass filter to smooth out noisy loads and stabilize readings.

What's Included In This Package:

• Fluke 325 True-RMS Clamp Meter
• TL75 Test Leads
• Type K Thermocouple
• Two AAA Batteries (Installed)
• Soft Case

Electrical Specifications:

Current measurement DC and AC 10 Hz to 100 Hz	Range	40 A / 400 A / 2000 A / 1400 AC RMS
	Resolution	10 mA / 100 mA / 1 A
	Accuracy	A: 1.5% rdg + 15 digits A: 1.5% rdg + 5 digits
	Trigger level for Inrush	0.50 A / 5.0 A / 5 A
	Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
	Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Crest Factor (50/60 Hz)	Range	40 A / 400 A / 2000 A / 1400 AC RMS
	Crest Factor1	2 @ 33 A, 2.4 @ 27 A 2 @ 330 A, 2.4 @ 270 A 2 @ 1000 A, 2.4 @ 833 A
Current measurement AC 100.1 Hz to 1 kHz	Range	40 A / 400 A / 2000 A; 1400 AC RMS
	Resolution	10 mA / 100 mA / 1 A
	Accuracy	10 A: 3.5% rdg + 15 digits 10 A: 3.5% rdg + 5 digits
	Trigger level for Inrush	0.50 A / 5.0 A / 5 A
	Trigger level for Hz filter OFF	2.50 A / 2.5 A / 8 A
	Trigger level for Hz filter ON	0.50 A / 2.5 A / 8 A
Frequency measurement	Measurement range	5.0 Hz to 1 kHz
	Resolution	0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz)
	Accuracy – 5.0 Hz to 100 Hz	0.2% + 2 counts
	Accuracy – 100.1 Hz to 1 kHz	0.5% + 5 counts
	Trigger level	Refer to current and voltage tables
1. Add 2% to error spec for CF > 2
